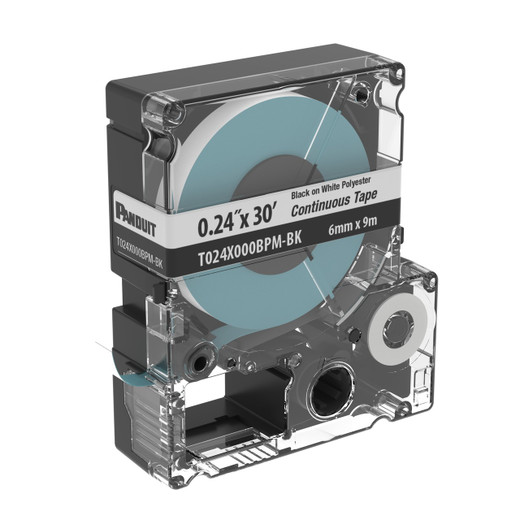

Panduit T024X000BPM-BK PXE Continuous Label Tape Cassette
The Panduit T024X000BPM-BK is a self-contained polyester label cassette engineered for on-demand wire, cable, and panel identification in commercial security, fire, and low-voltage installations. This 0.23" × 30 ft continuous tape delivers black-on-white printing for high-contrast readability in equipment rooms, telecom closets, and behind-rack environments where technicians work under poor lighting. The PXE cartridge design pairs both label material and ribbon in a single replaceable unit—eliminating ribbon-threading errors and reducing printer downtime during label runs.
Key Features
- Polyester base material resists abrasion, solvents, and temperature extremes (-40°F to +302°F)—outlasting vinyl in outdoor enclosures and uncontrolled mechanical rooms
- 0.23" (5.8 mm) tape width fits wire bundles, patch-panel ports, and terminal blocks in dense rack applications
- 30 ft (9.14 m) continuous length supports mid-size labeling jobs without cartridge changes—typical run yields 200+ short wire markers or 80+ panel labels
- All-in-one cassette design integrates label stock and thermal-transfer ribbon—no separate ribbon spools, no threading, no alignment guesswork
- Black-on-white printing meets ANSI/TIA-606-C administration standards for permanent infrastructure labeling
- Compatible with Panduit MP75, MP100, MP200, and MP300 portable printers—field technicians carry the same cassette for job-site and in-office label creation
Material Engineering for Installation Environments: The polyester substrate outperforms vinyl in three critical ways. First, it resists plasticizer migration—labels won't lift from PVC-jacketed cables when coiled in hot J-hooks or cable trays. Second, the material tolerates isopropyl alcohol and citrus-based cleaners used during pre-termination surface prep—vinyl labels often smear or delaminate when wiped. Third, polyester maintains print legibility after years of UV exposure in outdoor camera housings, unlike vinyl which fades to unreadable gray within 18 months of direct sunlight. Integrators working on municipal camera deployments, perimeter intrusion systems, or any installation subject to building-inspector review rely on polyester for labels that remain code-compliant through the system's service life.
Deployment Context and Workflow Integration: Commercial integrators face recurring scenarios where proper labeling directly impacts service-call profitability: troubleshooting a 64-camera system with unmarked home runs costs 4× the labor of a system where every cable carries a machine-printed destination label. The T024X000BPM-BK supports this documentation discipline without forcing techs back to the office printer. Field crews load cassettes into battery-powered MP-series printers, pull cable schedules from project tablets or markup drawings, and generate labels on-demand at the pull point—each wire gets its label before it enters the conduit, eliminating the post-installation label hunt that kills project margins. The 0.23" width works for Category-rated data cables (23–24 AWG), 18/2 fire-alarm initiating circuits, and RG59 siamese coax—the three cable types that comprise 80% of security-integration pulls.
Print Quality and Compliance: Thermal-transfer printing produces 300 dpi text and barcodes that survive the wear patterns integrators encounter: cable ties cinched over labels during bundle dressing, labels dragged across knockout edges during back-box stuffing, and labels subjected to pull-string abrasion in long conduit runs. The black resin ribbon bonds to polyester through heat and pressure—creating a print that won't rub off when gloves brush past it during future adds-moves-changes. For projects governed by TIA-606-C (telecommunications labeling standard) or local AHJ requirements, the black-on-white color scheme and smudge-proof output meet the "permanent and legible" language inspectors enforce. Integrators bidding government, hospital, or corporate campus work should verify their label system satisfies these requirements before mobilization—rework to replace non-compliant labels has tanked the profit on more than one low-voltage project.
The Panduit T024X000BPM-BK cartridge arrives as a consumable supply item that integrators should stock in quantities aligned to their monthly cable-termination volume. A typical security project—32-camera system with two network switches and one 16-channel NVR—consumes roughly 15 feet of 0.23" tape when labeling both ends of every home run plus all patch-panel and switch ports. Plan on one cassette per two medium-scale projects, or maintain a 5-pack for service departments that label retrofit work and troubleshooting additions throughout the month. The cassette installs in under 10 seconds with no tools—techs who bill by the hour appreciate the difference between a 10-second cartridge swap and a 3-minute ribbon-threading exercise on open-spool label printers.
