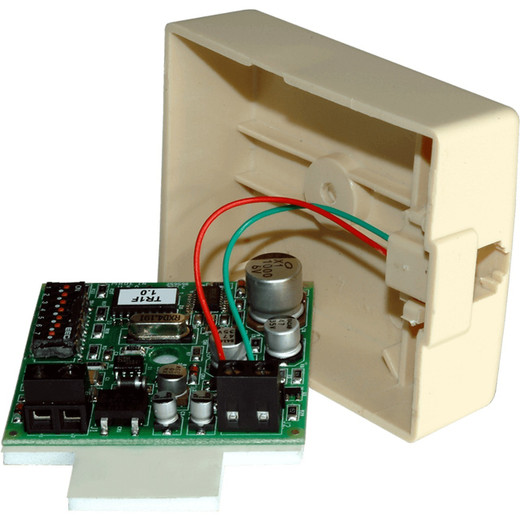

Viking Electronics TR1 Programmable Toll Restrictor with 6-Digit Bypass Code
Overview
The Viking Electronics TR1 is a line-powered toll restrictor designed for facilities that need to control unauthorized long-distance and toll calls without running a separate power supply to every phone location. Compatible with both Touch Tone and rotary (pulse) phones, the TR1 draws operating current directly from the phone line — 24V DC at 20mA minimum — making it straightforward to install inline at any analog extension. The TR1 stores its programming in non-volatile E2 memory, so bypass codes and timer settings survive power loss without reconfiguration.
For property managers, hospitality operators, and enterprise telecom coordinators who need a no-frills, hardware-based restriction layer on legacy or hybrid analog phone plants, this device handles the job without requiring PBX-level programming access or third-party software.
Key Features
- Phone Line Powered (24V DC @ 20mA min): No external power supply needed — the TR1 draws everything it needs from the phone line itself. This eliminates the cost and complexity of powering restriction hardware at each endpoint, particularly relevant in retrofits where running AC to phone closets isn't practical.
- 6-Digit Bypass Code: Authorized users enter a 6-digit code to bypass restrictions, giving you a meaningful credential requirement without the overhead of a managed access system. Six digits provides 1,000,000 possible codes — sufficient for standard commercial deployments.
- 0.5 to 49.5 Minute Call Timer with Disconnect: The adjustable timer automatically disconnects calls at a configured threshold, from 30 seconds up to just under 50 minutes. This is the right control mechanism for limiting abuse on unrestricted extensions (lobbies, break rooms, visitor phones) without cutting legitimate short calls.
- Touch Tone and Rotary (Pulse) Compatible: Works with both modern DTMF phones and older pulse-dial equipment. If your facility still has analog rotary stations mixed into the plant — common in older manufacturing, hospitality, or government buildings — the TR1 handles both without requiring a separate model.
- Non-Volatile E2 Memory: Bypass codes and timer settings are written to E2 (EEPROM) memory, which retains configuration through power interruptions. No battery backup required, no reprogramming after a line outage — the device comes back up in the same state it left.
- Compact Form Factor (2.75" x 2.25" x 0.88"): At under 3 inches in its longest dimension, the TR1 fits comfortably inside a standard single-gang phone enclosure or punch-down backbox. No dedicated rack space, no separate housing required in most installations.
- RoHS Compliant / Lead-Free: Meets RoHS restrictions on hazardous substances, which matters for facilities with environmental compliance requirements or EU-destined deployments.
Integration and Compatibility
The TR1 is designed for installation on standard analog telephone lines and is compatible with any analog phone instrument — Touch Tone (DTMF) or rotary pulse dialing. It does not require a specific PBX brand or proprietary system to function; it operates inline at the individual station level. This makes it compatible with virtually any analog extension port, including ports on hybrid PBX systems, KSUs, analog telephone adapters (ATAs), and plain POTS lines.
For facilities managing a larger analog telephone infrastructure, the TR1 pairs naturally with other Viking Electronics line-level devices, including line seizure units, auto-dialers, and entry systems, where a consistent manufacturer ecosystem simplifies sourcing and support. Integrators deploying analog phone control across multi-tenant commercial buildings or institutional environments will find the TR1 fits into a broader access control and communications management strategy at the station level.
Operating temperature range is 0°C to 32°C (32°F to 90°F) — standard indoor climate range. This device is not rated for outdoor or uncontrolled-temperature environments such as equipment rooms without HVAC.
Frequently Asked Questions
Q: Does the TR1 require an external power supply?
A: No. The TR1 is fully phone line powered, drawing 24V DC at 20mA minimum directly from the analog telephone line. No separate power adapter or outlet is needed at the installation point.
Q: What types of phones are compatible with the TR1?
A: The TR1 is compatible with both Touch Tone (DTMF) and rotary (pulse) dial phones. It works on standard analog telephone lines and analog extension ports on PBX and KSU systems.
Q: Will the TR1 lose its programming during a power outage?
A: No. Configuration is stored in non-volatile E2 (EEPROM) memory, which retains bypass codes and timer settings without power. The device resumes normal operation after any line interruption without reprogramming.
Q: What is the maximum call duration the TR1 can enforce before disconnecting?
A: The call timer is adjustable from 0.5 minutes (30 seconds) to 49.5 minutes. The unit will automatically disconnect the call when the configured threshold is reached.
Q: How many digits is the bypass code, and can it be changed?
A: The bypass code is 6 digits. The device is programmable, allowing authorized personnel to set and update the code as needed.
Q: Is the TR1 suitable for outdoor installation?
A: No. The operating temperature range is 0°C to 32°C (32°F to 90°F), which corresponds to standard conditioned indoor environments. It is not designed for outdoor or unheated equipment spaces subject to temperature extremes.
I've installed Viking analog line devices in a lot of commercial environments, and the TR1 earns its place specifically because it draws power from the phone line itself — 24V DC at 20mA minimum. That means you can drop one of these inline at any analog station without pulling power to the location, which matters when you're retrofitting an older building or adding restrictions to a handful of extensions in a tenant space without touching the main telecom closet.
Technical Highlights:
- Line-Powered Operation: 24V DC @ 20mA minimum from the phone line eliminates the need for any local AC outlet or power adapter, reducing both installation cost and points of failure at each restricted station.
- Adjustable Call Timer (0.5–49.5 min): Granular disconnect control lets you tune behavior to the extension type — short cutoffs for lobby phones prone to abuse, longer thresholds for conference rooms where legitimate calls run extended.
- Non-Volatile E2 Memory: Bypass codes and timer settings survive power interruptions without any battery or backup circuit. In facilities with frequent line cycling or unstable analog infrastructure, this is a practical advantage over volatile-memory alternatives.
Deployment Considerations:
- The TR1 sits inline on the analog station pair — verify the line presents at least 24V DC at 20mA at the point of installation, particularly on longer cable runs or systems with multiple devices bridged on the same pair, where voltage drop can push below the minimum operating threshold.
- Operating temperature tops out at 32°C (90°F). Telecom closets and equipment rooms without active cooling can exceed this in summer months — confirm the installation environment stays within range before deploying here rather than at the station end.
The TR1 is the right fit for multi-tenant commercial buildings, hospitality properties with mix of staff and guest analog phones, and institutional environments — schools, clinics, government offices — where you need station-level toll control without PBX reprogramming access or ongoing software licensing.
