Altronix Power Supply Charger 16 PTC Class 2 Outputs 12/24VDC @ 2.5A 115VAC BC400 - AL300ULXPD16CB

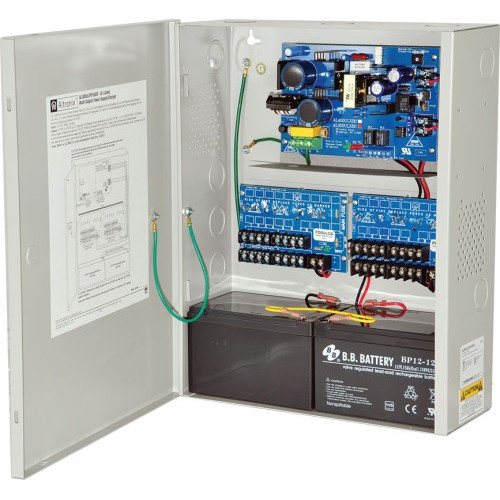

Altronix AL300ULXPD16CB Power Supply Charger

Overview

The Altronix AL300ULXPD16CB is a 115VAC input power supply and charger designed to deliver 12VDC or 24VDC output at up to 2.5A total current. It features sixteen (16) individually fused, Class 2, PTC-protected outputs, making it suitable for powering multiple low-voltage security devices like cameras, access control readers, or alarm panels from a single, reliable source. This unit is ideal for installations where distributed power is required, minimizing the need for multiple individual power bricks.

Compatibility

This power supply is designed to work with a wide range of low-voltage DC powered security and surveillance equipment. It is compatible with systems requiring 12VDC or 24VDC input, provided the total current draw does not exceed 2.5A. Specific compatible device families include, but are not limited to, various IP cameras, analog cameras, PTZ controllers, access control keypads, electric strikes, and alarm system components that operate within the specified voltage and current limits.

Installation Notes

The AL300ULXPD16CB requires a standard 115VAC, 60Hz power source. Each of the 16 outputs is protected by a PTC (Positive Temperature Coefficient) resettable fuse, rated for Class 2 output, preventing overcurrent damage to connected devices and the power supply itself. The unit must be installed in a dry, indoor location, typically within an enclosure or cabinet. Ensure proper ventilation to prevent overheating, as the total output current is capped at 2.5A.

What's in the Box

• 1x Altronix AL300ULXPD16CB Power Supply Charger
• 1x BC400 enclosure
