APC by Schneider Electric AP9883 Power Cable

Overview

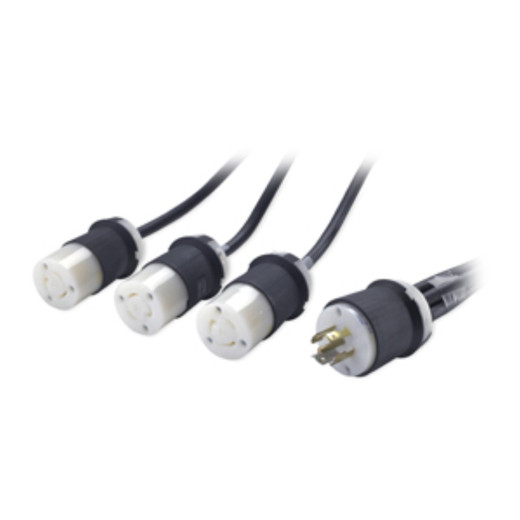

The APC AP9883 is a 1.83-meter (6 ft) black power cable designed for specific IT and AV rack deployments. It provides a direct connection between equipment with a NEMA L5-20R female inlet and a power distribution unit (PDU) or UPS output with a NEMA L21-20R male plug. This cable is rated for 16A and 208V, making it suitable for powering higher-draw devices within a standard server rack environment where L21-20R receptacles are common.

Compatibility

This cable is engineered to connect devices featuring a NEMA L5-20R female power inlet to power sources equipped with a NEMA L21-20R male connector. This configuration is typically found in enterprise data centers and network closets, allowing for the connection of specific server components, networking gear, or specialized AV equipment to common rack power infrastructure.

Installation Notes

Operating within a temperature range of 0°C to 40°C (32°F to 104°F), this cable is suitable for standard climate-controlled environments. Storage conditions can range from 0°C to 45°C (32°F to 113°F). The cable supports up to 16A and 208V, ensuring it meets the power requirements for compatible equipment without exceeding its operational limits. Relative humidity tolerance is 0-95% non-condensing for both operation and storage.
