APC by Schneider Electric SYPD11 Concise Descriptor

Overview

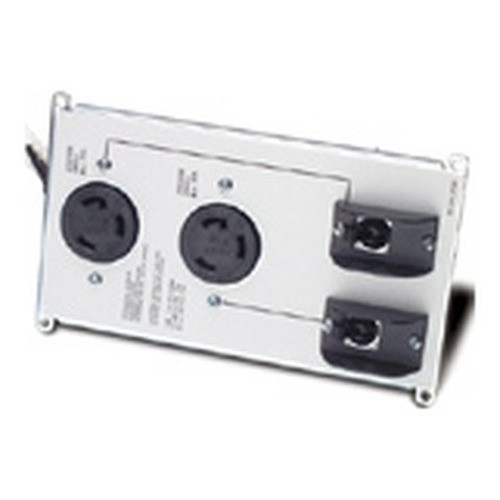

The APC by Schneider Electric SYPD11 is a black power backplate designed to extend power distribution and surge protection within a rack-mounted system. It provides two NEMA L6-30 female outlets, allowing you to connect high-power equipment directly to a compatible APC UPS or power distribution unit. This backplate is critical for ensuring reliable power delivery and safeguarding sensitive electronics in environments requiring robust power management, such as server rooms or network closets.

Compatibility

This backplate is specifically designed for use with APC Smart-UPS and other compatible rack-mount power protection devices that feature an L6-30 input. It is intended to integrate with specific APC UPS models and power distribution units that accept this type of backplate for expanded outlet capacity. Verify your UPS or PDU model supports the SYPD11 backplate for proper integration.

Installation Notes

The SYPD11 requires a secure mounting location within a compatible rack or enclosure. Ensure the input voltage from your power source (208V or 240V) matches the requirements of the connected UPS or PDU. The unit is designed for straightforward installation, typically involving securing the backplate and connecting the L6-30 outlets to your equipment. Proper torque should be applied during installation to ensure secure connections.
