Hanwha SPU-60241 60W DC 24V Power Adapter for AI PVM Displays

Hanwha SPU-60241 60W DC 24V Power Adapter for AI PVM Displays

The SPU-60241 is a dedicated external power supply engineered to deliver stable DC 24V / 2.5A output (60W total) to Hanwha's AI Public View Monitor (PVM) lineup. This is a single-purpose accessory — its job is to reliably convert wall AC into the regulated DC that these displays require. If you're deploying one of Hanwha's professional display monitors in a control room, retail environment, or public information setting, understanding the right power supply is essential to avoiding installation delays and field service calls.

Key Features

• Output Rating: DC 24V / 2.5A (60W): Delivers the exact voltage and current these displays expect. Undersizing the power supply risks brownout or shutdown; oversizing wastes money. The 60W rating matches Hanwha's PVM specifications precisely, eliminating guesswork during procurement.
• Universal AC Input: 100–240Vac, 50–60Hz: Works directly from standard wall outlets across North America, Europe, Asia, and other regions without a voltage converter. This eliminates the need for separate step-down transformers in multi-site deployments where regional outlet standards vary.
• Compact External Enclosure (110 × 62 × 31.5 mm): Roughly 4.3 × 2.4 × 1.2 inches — small enough to fit behind a display or within a shallow wall-mounted enclosure. Useful when rack space or cable routing is tight, and reduces cable clutter at the installation point.
• Operating Temperature Range: 0°C to +40°C (32°F to 104°F): Suitable for temperature-controlled indoor environments such as control rooms, retail floors, and corporate lobbies. Not rated for outdoor or unheated storage areas; if your display is exposed to direct sunlight or outdoor conditions, confirm the display itself carries appropriate environmental ratings first.
• Operating Humidity: 20% to 80% Non-Condensing: Standard office and retail humidity envelope. Avoid condensing environments (cold rooms warming rapidly) without additional desiccant or ventilation — condensation can corrode internal components and cause intermittent failures.
• Power Cord Included: Ships ready to deploy with a mains-voltage power cord. Verify the connector type matches your regional AC plug standard before ordering, especially in multi-region deployments.

Compatible Monitor Models

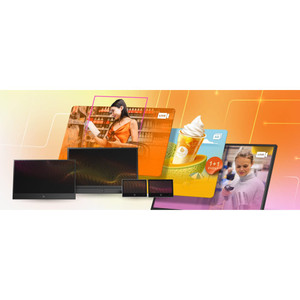

The SPU-60241 is specified for these Hanwha AI PVM displays: SMT-1031PV, SMT-1031PVW, SMT-2721PV, SMT-2731PV, SMT-3221PV, and SMT-3231PV. These span 10-inch, 27-inch, and 32-inch form factors. Before purchase, verify your display model against this list — installing the wrong power supply can damage the monitor or void its warranty. If you're uncertain which model you have, cross-reference the serial number plate on the rear of the display.

Deployment Context

Use the SPU-60241 when installing any compatible Hanwha AI PVM in a permanent, climate-controlled setting. Retail environments (point-of-sale displays, digital signage), command centers, and corporate briefing rooms are typical installations. Each display requires one adapter. If you're wiring multiple displays, order one SPU-60241 per monitor. Consider this an essential consumable — keep a spare on hand for rapid replacement if the primary adapter fails in the field. Replacement cycles in 24/7 retail or control-room deployments typically run 3–5 years.

Power and Installation Considerations

The SPU-60241 draws input current based on the connected display load (typically 0.3–0.5A at 240Vac, or 0.6–1.0A at 120Vac). Standard 15A wall circuits will easily support this without derating. No special outlet or power conditioning is required for normal office use. The adapter itself generates moderate heat under sustained load; ensure at least 2–3 inches of clearance around the enclosure, and do not bury it in a sealed conduit or cabinet without ventilation. If the adapter will run 24/7, inspect the power cord and connections quarterly for wear or oxidation.

Frequently Asked Questions

Q: Is the SPU-60241 compatible with non-Hanwha displays?

A: No. This adapter is engineered specifically for Hanwha AI PVM models. Using it on a third-party display that expects a different voltage or connector configuration may damage that display. If you need a power supply for a non-Hanwha monitor, consult the monitor manufacturer's specifications.

Q: Can I use the SPU-60241 outdoors or in a wet environment?

A: No. The adapter is rated for 0°C to +40°C operating temperature and 20–80% non-condensing humidity. It is not IP-rated and lacks environmental sealing. Outdoor installations or high-humidity areas (server rooms, cold-storage facilities) risk condensation and corrosion. Confirm the display itself is outdoor-rated before considering outdoor deployment.

Q: What happens if I connect the SPU-60241 to a display that draws more than 2.5A?

A: The adapter is designed to supply exactly 2.5A at 24V. If the display's current demand exceeds this under normal operation, the adapter's thermal protection may trip, causing intermittent power loss to the display. The six compatible models listed are engineered to operate within this current envelope. Do not attempt to force the adapter onto incompatible displays.

Q: How often should I replace the SPU-60241?

A: The SPU-60241 is a passive power supply with no user-serviceable parts. Expected service life in 24/7 duty is 3–5 years, depending on ambient temperature, load profile, and power-cord handling. If the adapter fails to provide stable 24V output or the power cord shows visible wear, replace it immediately. Keep a spare on hand to minimize downtime.

Q: Is a separate power conditioner or UPS needed?

A: For typical office and retail environments, no. Standard wall power is sufficient. If your facility experiences frequent power fluctuations or brief outages, consider a UPS (uninterruptible power supply) to support the display during transitions. The SPU-60241 itself has no battery backup — it will reset when AC power is lost.

Q: What's the input current draw at 120V versus 240V?

A: At 120Vac, expect 0.6–1.0A input current. At 240Vac, expect 0.3–0.5A input current. Both are well within the capacity of standard 15A branch circuits. No circuit derating is required.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SPU-60241 is a straightforward, single-purpose component that handles one job: converting AC wall power to regulated DC 24V for Hanwha's professional PVM line. What makes it worth a closer look is the precision of the 2.5A current limit and the universal 100–240Vac input, which means you can deploy these adapters across multiple regions without stock-keeping headaches or voltage converters. In a 10-display retail or control-center rollout, that's a material reduction in logistics complexity.

Technical Highlights:

• Exact DC 24V / 2.5A Output (60W): No undersizing risk, no oversizing waste. The rating is calibrated to the six compatible PVM models, which means you won't run into brownout or thermal shutdown issues in normal indoor operation. Current draw at 240Vac is 0.3–0.5A — well below the minimum threshold for any standard 15A branch circuit.
• Universal 100–240Vac Input: Eliminates regional voltage conversion. A single SKU covers North America (120V), Europe (230V), Asia-Pacific (220V), and most other markets. In a multi-site deployment, this cuts your adapter BOM from three or four regional variants down to one.
• Compact Footprint (110 × 62 × 31.5 mm): Fits behind wall-mounted displays or inside shallow enclosures without consuming rack space or cluttering cable runs. In dense retail or command-center layouts, that inch-for-inch savings compounds across dozens of installations.

Deployment Considerations:

• Temperature and Humidity Sensitivity: The 0–40°C and 20–80% non-condensing operating envelope is tight for outdoor, unheated, or high-humidity spaces. If your display installation borders a loading dock, cold-storage area, or faces direct sunlight, the display itself may fail before the adapter does — but confirm the display's environmental rating first. Condensation is the real killer here; avoid rapid temperature swings in sealed cabinets without ventilation.
• Model Compatibility Gatekeeping: The SPU-60241 works only with SMT-1031PV, SMT-1031PVW, SMT-2721PV, SMT-2731PV, SMT-3221PV, and SMT-3231PV. Trying to repurpose it on a third-party display or older Hanwha non-PVM model invites a field failure and potential equipment damage. Cross-check the model plate on the rear of the display before ordering. If you inherit a mixed fleet, you may need multiple adapter SKUs.
• 24/7 Heat Dissipation: Under sustained full-load operation (2.5A continuous), the adapter generates steady-state heat. It expects 2–3 inches of free air on all sides. Burying it in a sealed cable tray or conduit without ventilation will accelerate component aging. Inspect quarterly if running round-the-clock.

The SPU-60241 is the right choice for permanent indoor PVM installations where the display model is confirmed and the environment is climate-controlled. Retail point-of-sale systems, corporate lobby displays, and control-room monitors are textbook use cases. For outdoor, high-humidity, or temperature-extremes deployments, defer to the display manufacturer's environmental spec sheet first — the adapter's limits will likely be the limiting factor.
