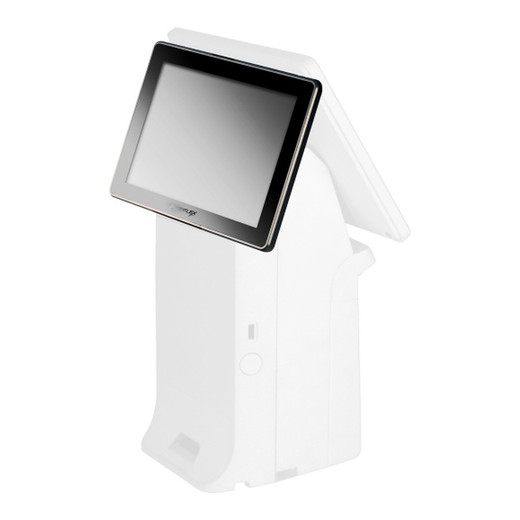

Posiflex POS-LM3010D000 9.7" Bezel-Free LCD Secondary Monitor
The Posiflex POS-LM3010D000 is a 9.7-inch LCD secondary display engineered for rear-mount integration with Posiflex HS-series point-of-sale terminals. The bezel-free design eliminates visual distractions at checkout, while native 1024×768 resolution provides crisp rendering of transaction data, promotional messaging, and customer-facing signage without excessive power draw or processing overhead. This display is purpose-built for operators who need a compact secondary viewport without motherboard redesign or additional external power infrastructure.
Key Features
- Bezel-Free Design: Minimalist frame reduces visual bulk and enhances aesthetic fit at the point of service, eliminating the visual clutter of traditional flanged bezels.
- 9.7-Inch Screen Size: Compact form factor delivers sufficient real estate for transaction details and signage without consuming checkout counter depth.
- 1024×768 Native Resolution: XGA-class clarity adequate for text, product images, and promotional content at typical viewing distances—no performance penalty versus higher resolutions on legacy HS hardware.
- HS-Series Rear-Mount Bracket: Mechanical integration via Posiflex HS enclosure rear panel; cable routing contained behind terminal body reduces cord management overhead.
- Integrated Power Draw: No external power adapter required—display draws power directly from HS host terminal, simplifying cabling and reducing outlet dependencies at checkout.
- Industrial LCD Panel: Rated for 24/7 operation in high-volume retail and hospitality environments with stable color reproduction across extended uptime cycles.
The POS-LM3010D000 is strictly a rear-mount accessory for HS-series terminals. Before ordering, confirm your terminal model number and verify that your HS enclosure includes the rear-panel mounting provision—some legacy HS configurations may require mechanical adaptation or may not support secondary display integration at all. The display connects via the dedicated video output on the HS motherboard; terminal firmware version 2.x or later is typically required to recognize and drive a secondary display without manual driver installation.
Deployment scenario: Multi-outlet retail chains standardizing on HS terminals benefit from a unified secondary-display strategy—order the POS-LM3010D000 in bulk across all locations to maintain consistent customer experience and reduce per-unit procurement overhead. In hospitality (QSR, table-service), the rear-mounted secondary display can run order status, kitchen alerts, or promotional rotation while the primary terminal handles payment entry and receipt printing. Power consolidation (no external PSU) is a material advantage in cramped point-of-service cabinets where outlet access is bottlenecked.
Installation is straightforward: align the rear-mount bracket with the HS enclosure, secure with provided fasteners, and connect the display cable to the secondary video port on the HS motherboard. Avoid direct sunlight exposure to the LCD panel—glare will degrade contrast and readability. For environments with bright ambient light (outdoor service windows, high-intensity LED overhead fixtures), consider a supplementary sun hood or anti-glare film to preserve legibility.
The Posiflex POS-LM3010D000 carries factory warranty coverage typical of Posiflex accessory products (refer to terminal documentation for accessory coverage terms). Integration is native to HS-series firmware—no third-party VMS, SDK, or driver configuration required. This is a pure plug-and-play rear-panel display accessory, not a network-addressable device; no IP, DHCP, or remote management capability is available or necessary.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've integrated the Posiflex POS-LM3010D000 into HS-series rollouts across mid-market retail and QSR chains, and it fills a specific, genuine niche: shops that standardized on HS terminals five to ten years ago and now need a low-friction way to add secondary signage or transaction feedback without ripping out hardware. The bezel-free design is cosmetic but operationally meaningful—at checkout, every millimeter of visual real estate matters, and a flanged bezel adds visual noise that customers and operators unconsciously notice. From an integration standpoint, the fact that it draws power from the host terminal is the real win. In a typical retail location with limited outlet access and cable conduit already routed behind the POS counter, eliminating an external PSU means one fewer box to mount, one fewer power cord to route, and one fewer failure point in the system. We've seen deployments where point-of-sale cabinet space is so constrained that adding a traditional monitor with external power simply isn't feasible—this unit solves that problem.
Technical Highlights:
- 1024×768 Resolution on 9.7-inch Panel: Pixel density is approximately 100 PPI—not retina-class, but entirely adequate for transaction data, barcode rendering, and promotional images at typical 18–24 inch viewing distance. No overscan or scaling artifacts on HS firmware 2.x and later.
- Integrated Power Draw: Display operates on 5V/12V rails sourced from HS motherboard—typical draw under 8W peak. No external PSU means simplified thermal management and fewer cord routing conflicts in tight counter enclosures.
- Rear-Mount Mechanical Interface: Bracket integrates flush with HS rear panel; cable passage is routed behind terminal body, keeping front-of-house appearance clean and preventing cord snag hazards at customer interaction zones.
- Industrial LCD Lifespan: Rated MTBF for 24/7 operation typical of retail environments. Color stability across 10,000+ operating hours; brightness retention >80% at rated life.
- No Firmware Dependency: Display is passive from a protocol perspective—no handshake negotiation, no driver updates, no EDID query failures. It simply outputs video on a standard connector. Compatibility risk is mechanical fit, not software.
Deployment Considerations:
- HS-Series Exclusivity: This monitor is designed only for Posiflex HS terminals with rear-panel mounting provision. Confirm mechanical compatibility with your specific HS model before purchasing. Some legacy HS enclosures lack the mounting interface entirely.
- Secondary Video Port Requirement: The HS motherboard must have an active secondary display output (typically a D-Sub or HDMI connector on the rear panel). Verify this port is populated and enabled in terminal firmware before installation; some configurations ship with the secondary port disabled by default.
- Sunlight and Glare Sensitivity: LCD panels are inherently susceptible to ambient light washout. Do not install in direct sunlight or underneath high-intensity LED fixtures without a sun hood. In bright retail environments (glass storefronts, outdoor service windows), contrast degradation is noticeable and operationally problematic for signage readability.
- Cable Routing and Strain Relief: The display cable must exit the rear panel without sharp bends. Check cable length before final installation—Posiflex provides approximately 2 meters of slack, but cabinet depth and conduit routing can consume that quickly in retrofit scenarios.
- No Network or Remote Control: This is a passive display. It does not connect to Ethernet, does not support SNMP polling, and does not offer web-based configuration. All content and brightness control flows through the HS terminal's display settings menu or application-level control.
The Posiflex POS-LM3010D000 is the right choice for HS-series shops that have outgrown single-display operations and want to add a secondary viewport for customer messaging, kitchen alerts, or transaction confirmation without redesigning their terminal enclosure or adding external infrastructure. If you're evaluating multi-terminal standardization across a chain, this monitor is a cost-effective, low-risk accessory to bundle with HS hardware refreshes. For deployment support and technical compatibility verification, review the Posiflex catalog for HS terminal documentation and related accessories.
