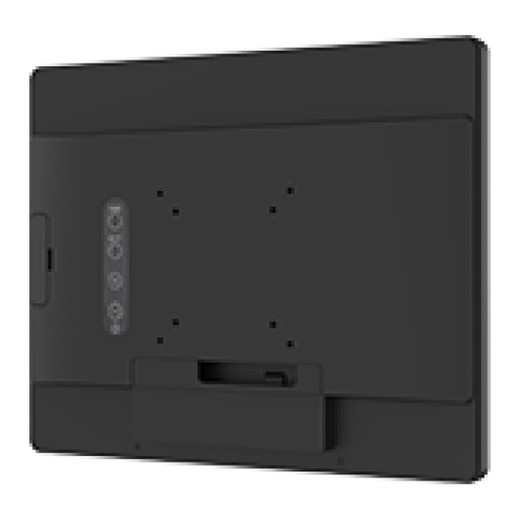

Posiflex MT5310E22D2PM7 10-Inch Touchscreen POS Terminal
Overview
The Posiflex MT5310E22D2PM7 is a 10-inch Intel Core M3-7Y30 fanless terminal running Windows 10 IoT 64-bit with 4GB LPDDR3 memory and 64GB eMMC storage. This unit integrates an MSR reader with L2 EMV chip support and RFID capability — a consolidated checkout or transaction-processing device for retail environments, quick-service restaurants, or warehouse operations where you need payment processing and barcode/card data capture in a single footprint. The M3-7Y30 CPU handles point-of-sale workloads and light VMS integration without thermal or power overhead.
Compatibility
The MT5310E22D2PM7 runs Windows 10 IoT 64-bit, making it compatible with standard POS software stacks (Square Register, Toast, Lightspeed, Clover, and proprietary systems that support Windows desktop environments). RFID and EMV readers integrate via built-in interfaces; confirm your payment processor and barcode-scanning framework support the specific reader firmware before deployment. The 64GB eMMC storage limits extended video buffering — if you need live camera feeds alongside transaction data, pair this with external NAS or cloud storage, not local recording.
Installation Notes
The MT5310E22D2PM7 is fanless — install in ambient temperatures between 0°C and 45°C (32°F to 113°F) for thermal stability. Ensure stable power (wall outlet or UPS recommended for transaction continuity); the system draws modest current but rapid power loss will corrupt unsaved transaction data. Mount using the standard VESA pattern or desktop stand included in retail packaging. Connect the MSR/RFID modules to their designated USB ports before boot to ensure driver recognition under Windows 10 IoT. EMV certification is embedded; no additional validation required if your payment processor is Level 1 or Level 2 compliant.
What's in the Box
- 1x Posiflex MT5310E22D2PM7 10-inch terminal unit
- 1x Power adapter and cable
- 1x VESA mounting bracket or desktop stand
- 1x EMV chip reader with USB interface
- 1x RFID module
- 1x Quick-start guide
