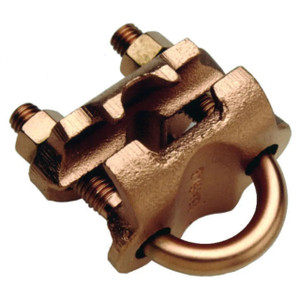

Hubbell HGBGAR2226 Pipe Clamp

Overview

The Hubbell HGBGAR2226 is a copper pipe clamp designed to provide a straightforward method for bonding electrical systems to existing plumbing. This clamp is specifically engineered for 5-inch diameter pipes, ensuring a secure and compliant connection for grounding and surge protection installations. Its robust copper construction offers excellent conductivity and corrosion resistance, critical for long-term reliability in commercial and industrial environments. The HGBGAR2226 model simplifies the process of establishing a reliable ground path, a fundamental requirement for safety and system integrity.

Compatibility

This pipe clamp is designed for direct attachment to standard 5-inch diameter pipes. It is compatible with a wide range of electrical grounding systems and surge protection devices that require a secure pipe connection. While not specific to any single surveillance or network equipment brand, it serves as a universal component for any installation where a 5-inch pipe is present and requires a ground bond.

Installation Notes

Installation requires a standard wrench or socket set to tighten the clamp securely onto the 5-inch pipe. Ensure the pipe surface is clean and free of debris for optimal contact. Torque specifications should be followed per local electrical codes and the requirements of the connected grounding conductor and terminal. The clamp is intended for use with appropriate grounding conductors sized according to code requirements.
