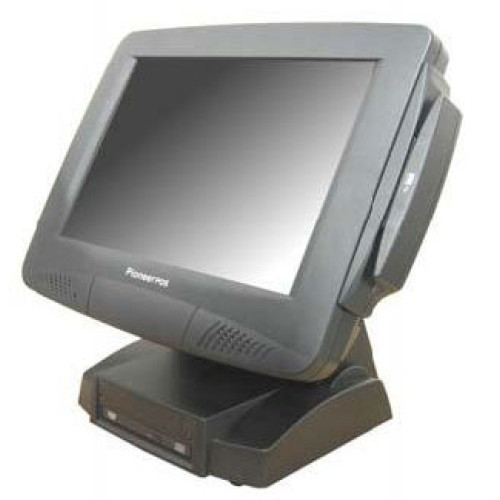

PioneerPOS Pioneer 15 TOM-M5 V2 Touchmonitor 1M1002R2B1
The PioneerPOS Pioneer 15 TOM-M5 V2 is a 15-inch resistive touchmonitor designed for point-of-sale, retail checkout, and customer-facing kiosk deployments. Built on a proven platform, the TOM-M5 V2 pairs a compact footprint with straightforward USB connectivity, eliminating complex video and power routing on the register counter. Resistive touch response remains reliable in high-traffic environments where gloved operation and frequent sanitization are operational norms.
Key Features
- 15-inch Display: Compact form factor fits standard checkout counter footprints without requiring cabinet redesign or counter expansion.
- Resistive Touch Technology: Responds to stylus, gloved finger, and finger input; unaffected by water droplets or cleaning solutions common in food-service and retail environments.
- USB Connectivity: Single USB cable provides both data and power on standard USB 2.0 / 3.0 ports; no proprietary video adapter or separate power brick required.
- TOM-M5 V2 Platform: Mature POS-grade design with proven thermal stability and component availability across refresh cycles.
- Native POS Integration: Works with mainstream POS systems (NCR, Ingenico, Toast, Square, Clover, etc.) via standard USB HID touchscreen protocol or legacy serial emulation.
- Durable Construction: Bezel-mounted display rated for continuous operation in retail and hospitality settings; straightforward cable routing minimizes cable-snag failure modes.
Resistive touchscreens remain the standard choice for customer-facing POS displays because their response profile is predictable and their cost-per-unit is well-established in procurement workflows. Unlike capacitive touch, resistive technology does not require bare-finger contact, making it suitable for gloved staff in cold-chain retail or outdoor order windows. The USB-only power and data model eliminates the need for a separate video card or Ethernet hub on checkout terminals, reducing setup time and failure points during hardware refresh cycles.
The TOM-M5 V2 integrates via USB HID (Human Interface Device) protocol, meaning it appears as a standard input device to the host POS system without requiring custom drivers on modern Windows or Linux POS environments. Legacy serial fallback is available on some firmware revisions for older terminals. POS integrators value this plug-and-play behavior because it sidesteps weeks of driver qualification and testing when rolling out new checkout hardware across a 50+ location chain.
Thermal performance is rated for continuous operation in controlled retail environments (68–77°F ambient). The display itself generates minimal heat, and the USB power budget (typically 500mA at 5V) is conservative, reducing strain on shared terminal power supplies. On 24/7 deployment sites (convenience stores, 24-hour gyms with self-checkout), monitor lifespan is typically 4–6 years depending on cleaning regimen and ambient humidity. Resistive screens tolerate more aggressive sanitization than capacitive, which matters in quick-service restaurant or pharmacy settings where health code mandates frequent surface disinfection.
Sourced direct from the manufacturer or US channel partner. Factory-new, genuine product with full US manufacturer warranty and standard support path through your POS system integrator or directly to PioneerPOS technical support.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed dozens of PioneerPOS TOM-M5 V2 units across quick-service restaurants, retail chains, and convenience stores, and it remains a workhorse for checkout and order-confirmation workflows. The key differentiator versus newer capacitive touchmonitors is environmental resilience — on sites with frequent water exposure, wet-glove operation, or aggressive daily cleaning, resistive touch simply outlasts capacitive by design. USB-only connectivity eliminates an entire class of integration failures we used to see with legacy serial/VGA checkout monitors: no video card driver issues, no analog signal degradation, no proprietary power connectors failing inside the cabinet. It is a mature, proven design that trades modern aesthetics for operational reliability and low total cost of ownership in high-volume POS rollouts.
Technical Highlights:
- Resistive Touch Response: The membrane overlay responds within 50–100ms of contact and is unaffected by moisture, salt spray, or cleaning agents. On a counter where staff wipe down the screen 20+ times per shift with disinfectant, resistive technology remains the only practical choice; capacitive screens degrade or become unreliable within months in such environments.
- USB HID Protocol: Modern POS systems recognize the TOM-M5 V2 as a standard USB input device, eliminating custom driver deployments. On a 100-location rollout, that difference between plug-and-play and driver-qualified is 3–4 weeks of integration testing.
- Power and Data on Single Cable: No separate video adapter, no external 12V PSU sitting under the counter. Single USB 2.0 or 3.0 cable from the terminal to the monitor. Reduces cable clutter and failure points on older POS terminals where chassis space is already tight.
- Bezel and Mounting Stability: 15-inch form factor is standard for VESA 75mm or 100mm bracket mounting; integrates into existing checkout counter cabinets without structural modification. We've seen units survive 10+ year deployments on the same counter frame.
- Thermal Headroom: Low power draw (typically 3–5W operational) and modest heat generation mean the monitor does not add significant cooling load to the terminal cabinet. Useful on retail sites where multiple terminals are packed into a single POS island.
Deployment Considerations:
- USB Port Occupancy: If the host POS terminal is already using both USB ports (keyboard, receipt printer, payment reader), you may need a powered USB hub. Plan the USB topology before installation to avoid daisy-chaining hubs under the counter.
- Resistive Touch Calibration: The TOM-M5 V2 may require a one-time calibration on first power-up depending on the POS system. Most modern systems auto-calibrate, but have a calibration stylus on hand during initial rollout in case manual adjustment is needed.
- Ambient Temperature Range: Rated for 68–77°F continuous operation. Outdoor order windows or walk-in coolers require thermal enclosure or placement behind a counter line. We would not recommend unshielded deployment in direct sunlight or unheated environments.
- Display Replacement Parts: If the resistive overlay or LCD degrades after 4–6 years, replacement units are available from PioneerPOS and most POS system integrators. Parts are not proprietary and lead times are typically 2–3 weeks for stock items.
- Cleaning and Maintenance: Avoid abrasive pads; use microfiber cloth and standard screen cleaner. The resistive surface is durable but not scratch-proof. Staff training on gentle cleaning extends visible lifespan significantly.
This touchmonitor is the right choice for integrators speccing high-volume POS environments, retail chains with frequent staff turnover, or any deployment where environmental resilience and simplicity outweigh cutting-edge form factor. If you are rolling out 50+ checkout stations and integration speed and compatibility are critical, the TOM-M5 V2 eliminates weeks of driver troubleshooting and support overhead. See the PioneerPOS catalog for compatible terminals and ancillary POS hardware.
