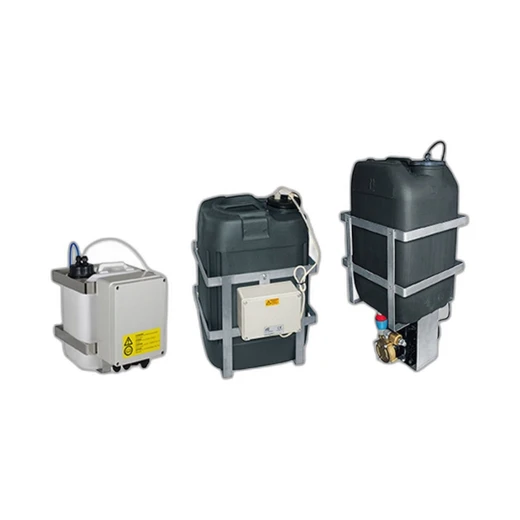

Pelco WASPT1V23L30M00 PTZ Wash System 23L
The Pelco WASPT1V23L30M00 is a professional PTZ camera washer system engineered for remote installations requiring extended hose runs. Featuring a 23-liter reservoir, integrated wash pump, float valve auto-refill mechanism, and 30-meter supply hose, this system delivers reliable lens cleaning for PTZ cameras positioned on tall poles, bridge structures, and perimeter installations operating on 230 Vac infrastructure.
Key Features
- 23-liter wash fluid reservoir with durable construction
- 30-meter extended supply hose for remote camera deployments
- Integrated wash pump and float valve auto-refill from water supply
- 230 Vac rated for international installations
- Purpose-engineered for WASPT-series PTZ housing assemblies
- NDAA Section 889 compliant for regulated environments
- 5-year warranty coverage
Technical Highlights
The extended 30-meter hose accommodates installations where the tank location must be separated significantly from the PTZ camera position, common in large-scale surveillance deployments. The float valve ensures continuous operation by automatically refilling from connected water supplies, eliminating manual intervention. This system is specifically matched to Pelco's WASPT PTZ wiper/washer assemblies and is not compatible with fixed camera housing WAS-series washers.
Applications
Ideal for enterprise security deployments in harsh environments where lens contamination impacts image quality. Specify for perimeter surveillance, transportation infrastructure, industrial facilities, and remote area monitoring where 230 Vac power is available. For 120 Vac installations, the WASPT3V23L30M00 provides equivalent functionality. Shorter hose configurations in 5-meter and 11-meter options are available for standard deployment distances.
