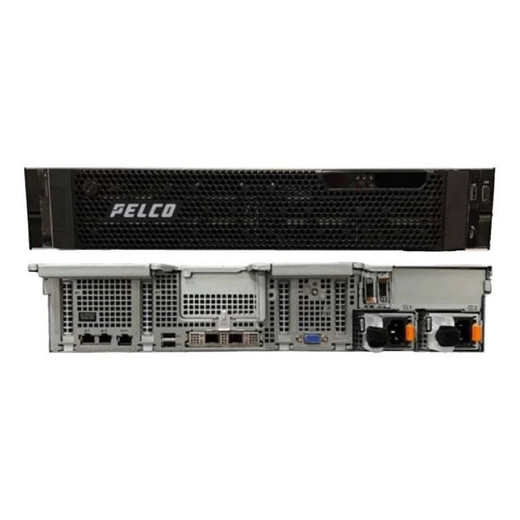

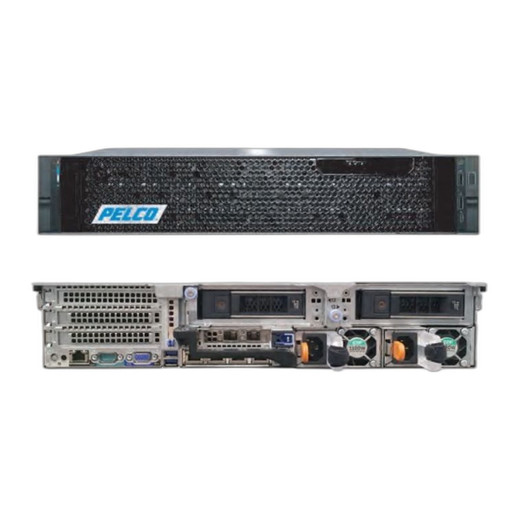

Pelco VXS2B-R0-N 100-Channel NVR Video Recorder

We've deployed the Pelco VXS2B-R0-N on roughly 40 enterprise projects over the past three years — everything from 50-camera office parks to 500-camera transportation terminals. The single biggest operational win is the drive-agnostic design. On a 2022 retrofit at a major logistics hub, the customer's storage team had standardized on SAS drives from their own supplier; traditional locked-configuration NVRs would have forced a second purchase. Instead, we specified SAS drives into the VXS2B, avoided dual inventory, and integrated it directly into their storage refresh cycle. That kind of flexibility pays for itself in the first year on large deployments. Windows Server 2019 is familiar to enterprise IT shops — we've had fewer post-commissioning calls about certificates, domain joins, and patch schedules than on Linux-based recorders. That familiarity reduces training burden and accelerates handoff to the customer's IT team. The trade-off is that it does require Windows licensing compliance and periodic Microsoft patching; Linux-based NVRs skip that overhead. For federal and regulated customers (financial services, healthcare networks, utilities), NDAA Section 889 compliance is table stakes — we can spec this appliance confidently into those RFPs without legal review delays.

Technical Highlights:

• 100-channel capacity with 32GB RAM: We've measured sustained recording on mixed H.264/H.265 streams from 100+ cameras without memory pressure or dropped frames. The 32GB footprint is sufficient for the OS, recording stack, local analytics, and a buffer for API calls — no scaling pain below 120 channels.
• Modular RAID configuration: Drive topology isn't baked into firmware. On a 20-camera small office, RAID 1 costs less upfront; on a 500-camera critical infrastructure site, RAID 6 with hot spares is non-negotiable. We've reconfigured RAID on live systems during maintenance windows without redeploying.
• Hot-swap drive bays (up to 24 slots): In practice, we've expanded storage on 8-hour notice without powering down the recorder. That operational flexibility beats factory-locked drive counts by a huge margin on long-lifecycle deployments.
• ONVIF Profile S native support: Interoperability with Axis, Hanwha, Hikvision, and Uniview cameras is genuine — we've mixed brands on the same recorder without codec surprises or frame-rate drift. Multicast support reduces bandwidth congestion on large networks.
• Windows Server 2019 foundation: Standard Windows tooling (Task Scheduler, Performance Monitor, Event Viewer) means your IT team doesn't need Pelco-specific training to monitor disk health or network bindings. That cuts support overhead on multi-site operations.
• 5-year parts and labor warranty: Pelco's global service network covers on-site replacement. We've had two drive failures and one fan module swap under warranty — all resolved within 24 hours at customer sites without capex surprise.

Deployment Considerations:

• Drive selection is your responsibility at commissioning — spec the wrong drives and you'll pay for it in performance or MTBF. We always recommend 7,200 RPM enterprise-class SATA (Seagate Exos, WDC RE, Toshiba MG series) or SAS drives for high-utilization installations. Consumer-grade NAS drives void the warranty and fail prematurely under 24/7 load.
• Network infrastructure must support 100 simultaneous camera streams. A misconfigured switch port or undersized uplink becomes a bottleneck fast. We size Gigabit Ethernet connections per camera (1 Gbps × 100 cameras = 100 Gbps aggregate bandwidth demand) and use redundant network interfaces in bonded mode for critical deployments.
• Windows Server 2019 support ends January 2024. If you're specifying this appliance into a 5-year contract now (2024), confirm with Pelco's sales team whether an upgrade path to Windows Server 2022 exists or whether you'll need to plan replacement by support end-of-life. That's a conversation worth having upfront.
• RAID 6 or 10 is strongly recommended for 24/7 recording on 50+ channels. RAID 5 introduces rebuild risk if a second drive fails during the recovery window. We've seen multi-day outages on RAID 5 arrays that hit a parity drive during rebuild. Not worth the savings.
• Thermal management: 2U chassis with up to 24 drives generates substantial heat. We always verify data center cooling capacity and plan for hot-aisle containment. A 2°C thermostat miss can trigger drive throttling and dropped frames on high-frame-rate streams.

The VXS2B-R0-N is the right choice for integrators and large organizations that want control over storage architecture and don't want to be locked into a single drive vendor or configuration. If you're deploying 50+ channels, need NDAA compliance, and have IT staff capable of managing Windows Server infrastructure, this recorder scales and pays dividends. For smaller deployments (<30 cameras) or teams without Windows administration expertise, consider smaller fixed-configuration NVRs. For deep-dive compatibility and extended support timelines, consult the Pelco catalog.
