Discontinued — No Longer Available New
This model has been discontinued by Pelco. Shop current Pelco products → or see the recommended alternatives below.

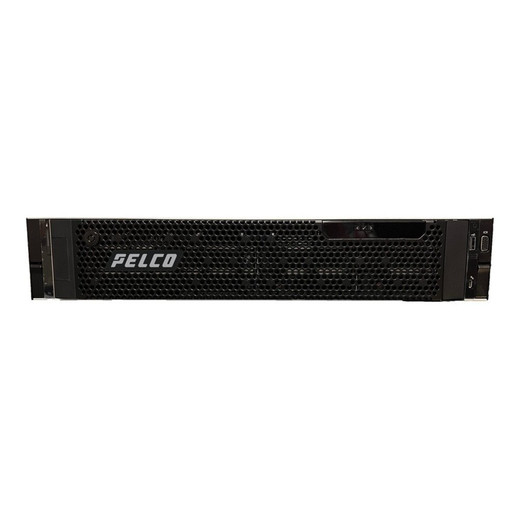

Pelco VXP-P3-72-5N VideoXpert Pro 72Ch NVR Server
The Pelco VXP-P3-72-5N is a VideoXpert Professional Power 3 network video recorder engineered for mid- to large-scale enterprise surveillance deployments. Supporting 72 channels with RAID 5 storage redundancy, this Windows Server 2019-based platform delivers reliable video management with single-drive fault tolerance, balancing data protection against storage efficiency for organizations requiring both performance and availability.
Key Features
- 72-channel recording capacity with centralized management
- RAID 5 storage configuration with single-drive fault tolerance
- Windows Server 2019 operating system for enterprise domain integration
- Intel Xeon Silver processor with 16 GB RAM
- Dual 1GbE network interfaces for redundant connectivity
- iDRAC remote management for out-of-band system administration
- 5-year warranty for extended coverage and support
- NDAA Section 889 compliant for government and regulated deployments
Technical Highlights
Built on enterprise-grade hardware, the VXP-P3-72-5N combines processing power with managed storage architecture. The Intel Xeon Silver CPU and 16 GB memory support high-throughput video processing and simultaneous multi-stream operations. RAID 5 configuration protects against single disk failure while maintaining 85% usable capacity—ideal for deployments where storage efficiency matters. Dual 1GbE NICs enable network redundancy, critical for business continuity. Windows Server 2019 integration allows seamless Active Directory authentication and enterprise policy management.
Applications
Ideal for corporate campuses, retail networks, transportation hubs, and industrial facilities requiring centralized video management with enterprise-class reliability. The RAID 5 architecture suits organizations needing protection without the capacity overhead of RAID 6. Windows Server foundation supports IT teams already invested in Microsoft ecosystems.
Ordering Guidance
For dual-drive fault tolerance on Windows Server, consider the VXP-P3-72-6N. For RAID 5 on IoT Edition without Active Directory requirements, the VXP-P3-72-5T is available. Purchase through authorized Pelco distribution channels to ensure warranty validation and technical support access.
