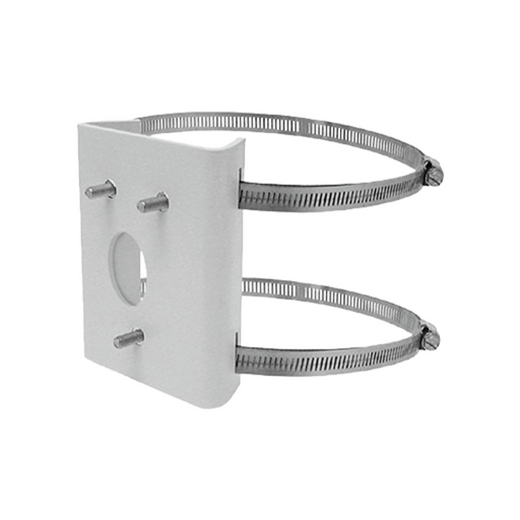

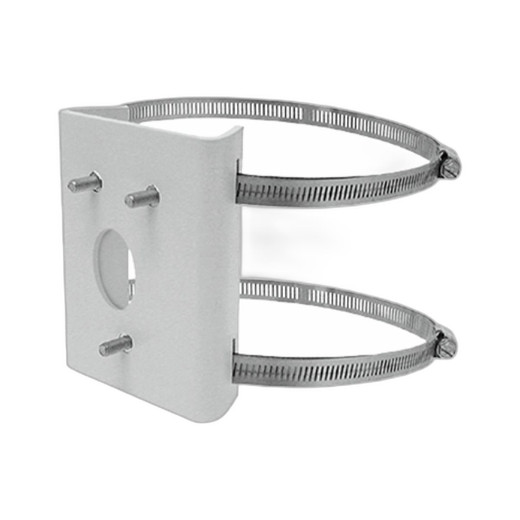

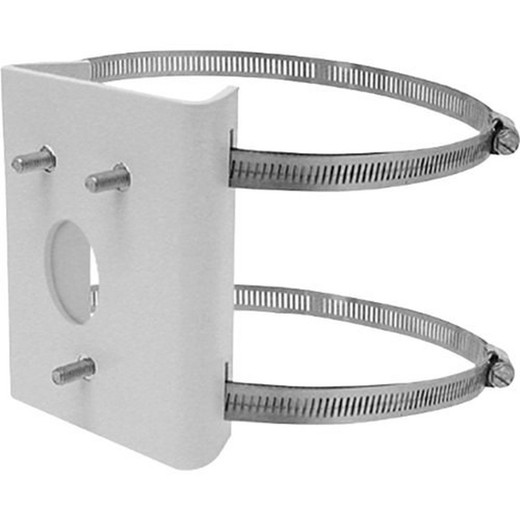

Pelco PA101 Pole Mount Adapter for PM14
The Pelco PA101 is a specialized adapter that converts the Pelco PM14 wall mount into a pole-mount configuration. If you are deploying outdoor surveillance on cylindrical poles—common in parking lots, perimeter fencing, and industrial sites—this adapter eliminates the need for additional mounting brackets, streamlining both procurement and field installation. The PA101 maintains structural integrity under the wind and vibration loads typical of pole-mounted camera systems, so your camera platform stays stable across temperature swings and weather events.
Key Features
- Direct PM14 Conversion: The PA101 adapts the existing PM14 wall mount form factor to pole installation without requiring separate bracket purchases or custom fabrication. This cuts parts count and simplifies inventory management when scaling deployments across multiple sites.
- Cylindrical Pole Installation: Designed specifically for round pole mounting, the adapter accepts standard industrial poles (typical 1.5-inch to 2.5-inch diameters, depending on your pole specification). Verify your pole OD before ordering if you are working with non-standard dimensions.
- Structural Stability Under Load: Pole-mounted cameras face lateral wind forces and vibration that wall mounts do not. The PA101 is engineered to handle these dynamic loads, but you must verify your pole's structural adequacy for the combined weight of your camera, lens, and housing, plus anticipated wind loading for your deployment geography. A structural engineer's review is prudent for critical infrastructure sites or high-wind regions.
- Exclusive PM14 Compatibility: The PA101 works only with Pelco PM14 mounts. Do not attempt to use it with other Pelco mount families; incompatible attachment interfaces will result in unsafe installation.
- NDAA Section 889 & TAA Compliant: If your project falls under federal procurement rules or requires supply-chain compliance certification, the PA101 meets Section 889 restrictions on Huawei, ZTE, and related entities, and is TAA-eligible. This matters for government contracts, critical infrastructure upgrades, and regulated facilities where compliance documentation is mandatory.
- 1-Year Warranty: Covers defects in material and workmanship. Damage from improper installation (e.g., over-tightening, non-compliant pole, environmental neglect) is typically excluded; review the warranty terms with your distributor before deployment.
Installation Considerations
Pole-mounted systems require field assessment before installation. Inspect your pole for corrosion, structural damage, and adequate diameter for the adapter's clamping mechanism. Galvanized or stainless-steel poles are preferred in coastal or high-corrosion environments. If your installation calls for white-finish poles that require strap attachment (rather than direct clamping), the PA101-SW variant is available—confirm availability with your authorized distributor before placing an order.
Wind loading is a real factor. A 4-inch dome camera at the end of a 10-foot pole in a 40 mph wind gust can generate several hundred pounds of lateral force. Undersized poles or poor foundation work will result in camera drift, focus loss, and accelerated bearing wear. Always specify pole size conservatively, and have a structural review done for critical deployments.
Ideal For
- Government and critical infrastructure surveillance (NDAA-compliant procurement)
- Commercial outdoor perimeter monitoring (parking lots, building facades, loading docks)
- Industrial facility deployments (warehouses, manufacturing plants, refineries)
- Enterprise multi-site rollouts where standardized mount families reduce support overhead
Frequently Asked Questions
Q: Is the PA101 compatible with non-Pelco cameras?
A: The PA101 is a mounting adapter for the Pelco PM14 mount only. Your camera must attach to a PM14 mount. If your camera uses a different mount interface, the PA101 will not work. Confirm your camera's mount compatibility before ordering.
Q: What pole diameters does the PA101 support?
A: The adapter is engineered for standard cylindrical poles. Exact diameter ranges should be verified against the PA101 datasheet or technical documentation from Pelco. Contact your authorized Pelco distributor with your pole OD specification if you need confirmation before purchase.
Q: Is the PA101 NDAA Section 889 compliant?
A: Yes. The PA101 is certified NDAA Section 889 and TAA compliant. If your project requires federal procurement compliance, this adapter meets those requirements.
Q: Do I need additional hardware to install the PA101?
A: The PA101 eliminates the need for separate mounting brackets, but you will still need appropriate fasteners and hardware to secure the pole itself to a foundation or structure. Standard stainless-steel hardware is recommended for outdoor installations.
Q: What is the warranty on the PA101?
A: The PA101 includes a 1-year manufacturer's warranty covering defects in material and workmanship. Damage from improper installation or environmental exposure beyond the product's rated specifications is typically not covered.
Q: Is the PA101-SW variant available, and when should I use it?
A: The PA101-SW is designed for white-finish poles that require strap attachment instead of direct clamping. If your deployment uses this configuration, confirm PA101-SW availability with your authorized distributor before ordering.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I spec the PA101 primarily for government and critical infrastructure projects where NDAA Section 889 compliance is non-negotiable. The adapter itself is straightforward—it converts a PM14 wall mount to pole configuration—but the real value lies in eliminating custom bracket engineering and the associated procurement delays. On federal projects, every part that touches compliance adds review time; standardizing on a single adapter from Pelco that comes pre-certified for Section 889 and TAA cuts months of back-and-forth with compliance officers.
Technical Highlights:
- NDAA Section 889 & TAA Compliance: Pre-certified for government procurement. Eliminates need for individual part-level compliance review, reducing RFQ cycle time and supply-chain documentation overhead.
- PM14 Mount Standardization: By locking to the PM14 family, the PA101 forces consistency across multi-site deployments. One mount form factor, one adapter spec, one spare-parts kit across your entire fleet.
- 1-Year Warranty: Covers defects in material and workmanship, but not installation damage. On pole mounts, improper fastening or undersized poles will void coverage; budget for pre-installation inspection.
Deployment Considerations:
- Pole Structural Load: Wind loading on pole-mounted cameras is not theoretical—a 4-inch dome in 40 mph wind generates several hundred pounds of lateral force. Verify your pole diameter, material, and foundation capacity before ordering. A structural review is worth the cost for critical infrastructure.
- White-Finish Pole Variant: The PA101-SW exists for strap-attachment scenarios (white poles, retrofit situations). If your site design requires straps instead of direct clamping, confirm PA101-SW availability early; supply can be inconsistent on specialty variants.
Deploy the PA101 on government surveillance projects, critical infrastructure perimeter work, and enterprise multi-site rollouts where mount standardization cuts support costs. Skip it if you need flexibility across different mount families or if your pole design falls outside standard cylindrical dimensions—those scenarios call for custom engineering or a different mount strategy.
