Pelco NXM36K1000 NX Series Stainless Camera Housing

Pelco NXM36K1000 NX Series Stainless Camera Housing

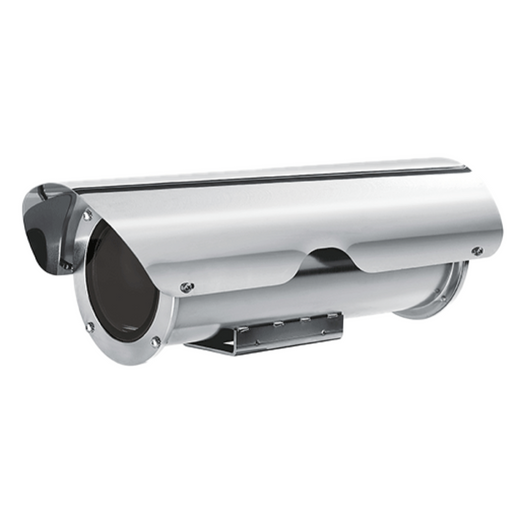

The Pelco NXM36K1000 is a 360mm stainless steel camera housing engineered for demanding outdoor and industrial surveillance environments. Featuring integral sun shield and internal heater, this AC-powered enclosure delivers robust environmental protection with corrosion resistance ideal for coastal, food processing, and washdown applications.

Key Features

• 360mm stainless steel construction for superior corrosion resistance
• Integral sun shield minimizes thermal loading and glare
• Internal heater maintains operational temperature in cold climates
• Dual voltage support: 120/230 Vac mains input
• NDAA Section 889 compliant for government procurement
• 5-year manufacturer warranty

Technical Specifications

The NXM36K1000 accepts standard AC mains power (120 or 230 Vac), making it ideal for installations with readily available facility infrastructure. The internal heater automatically regulates chamber temperature for year-round operation in cold climates. Verify camera body and lens dimensions fit within the 360mm interior aperture before ordering. For low-voltage DC/AC applications, specify the NXM36K2000 variant. For extreme cold environments requiring dual heaters, the NXM36K1050 is recommended.

Applications

Suitable for commercial and industrial surveillance deployments including coastal installations, food processing facilities, washdown environments, and regulated sites requiring NDAA compliance. Bracket selection and air barrier options (ONXMAIRB) are available as separate purchases.
