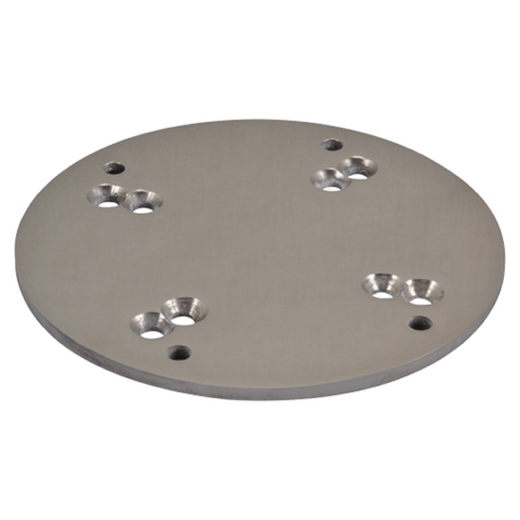

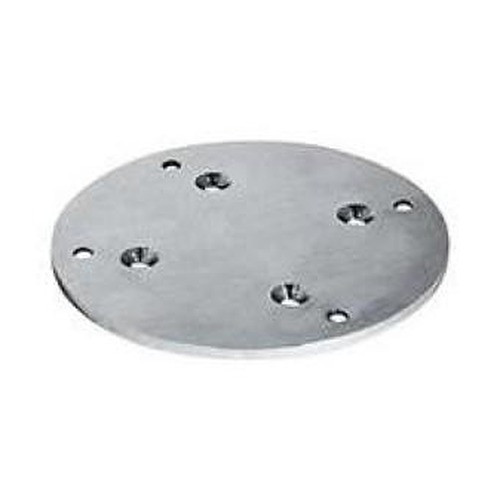

Pelco MPXWBTA Parapet/Ceiling Mount Bracket
The Pelco MPXWBTA is a specialized mounting accessory engineered for MPX Series camera deployments on parapet ledges and overhead ceiling surfaces. This bracket solves a real installation problem: standard wall mounts don't work when your surveillance objective requires overhead positioning or when building geometry limits traditional mounting points. If you're securing a perimeter where cameras need to look down from ledges, or covering a warehouse floor from above, this bracket delivers a purpose-built interface that pairs directly with Pelco's MPX camera family.
Key Features
- Parapet and ceiling mounting: Addresses installation scenarios where wall mounting is impractical or where overhead sightlines improve coverage. Ledge and soffit positioning often reduces obstruction and improves camera angles in retail, industrial, and institutional settings.
- MPX Series compatibility: The MPXWBTA integrates with the complete Pelco MPX camera line, using the manufacturer's standard mounting interface — no adapters, no guesswork. Verify camera specifications before purchase to confirm exact compatibility with your model.
- IP66 environmental rating: Direct rain exposure and dust ingress won't compromise the bracket itself. IP66 means the mounting hardware can handle outdoor weather, though you still need to verify that your camera meets the same or higher IP rating for a fully sealed outdoor deployment.
- Wired connectivity support: The bracket accommodates the wiring path for PoE+ and auxiliary cables, though cable routing and strain relief depend on your installation approach. Budget extra time during commissioning to plan cable runs from the ceiling or parapet down to your network infrastructure.
- Commercial and industrial deployment focus: Built for mission-critical settings — government facilities, critical infrastructure, warehouses, retail chains, and institutional properties where overhead surveillance is standard practice.
- NDAA Section 889 compliance: Meets federal procurement requirements for U.S. government contracts, if that's part of your bidding scope. This certification removes one approval hurdle for government and defense-contractor projects.
- 1-year manufacturer warranty: Standard coverage protects against material and workmanship defects — typical for mounting hardware in this class.
Integration & Compatibility
The MPXWBTA mounts directly to Pelco MPX cameras using the OEM mounting interface. Before ordering, confirm your specific camera model is listed in the MPX product family; mounting compatibility is strict and non-interchangeable across different Pelco lines. Once mounted, the bracket supports the electrical pathways for IP cameras drawing PoE+ power (typically 25–95W depending on camera model and features).
Structural verification is non-negotiable. Parapet ledges and ceiling joists vary widely in load capacity. You must confirm that the combined weight of the bracket, camera, and any additional hardware (lens modules, heaters) does not exceed the structural rating of your mounting surface. Undersized or degraded parapets have caused camera falls — engage a structural engineer or facilities team before installation if load limits are unclear.
Cable routing from overhead positions to your network video recorder or PoE switch often requires conduit, cable trays, or wall penetrations. Budget time and material costs for this infrastructure work during the design phase.
When to Choose a Different Solution
If standard wall mounting is feasible, use Pelco's wall bracket variant instead — it's simpler to install and less prone to structural complications. If your ceiling height or parapet geometry makes the MPXWBTA impractical, consider a pendant mount or articulated arm designed for those specific constraints. For indoor-only ceiling mounts in benign environments, lighter-duty brackets may be more cost-effective.
Frequently Asked Questions
Q: Is the MPXWBTA NDAA Section 889 compliant?
A: Yes. The MPXWBTA meets NDAA Section 889 compliance requirements, making it suitable for U.S. government and federal contractor procurement.
Q: What is the warranty on the MPXWBTA?
A: The MPXWBTA includes a 1-year manufacturer warranty covering defects in material and workmanship.
Q: Does the MPXWBTA work with all Pelco cameras?
A: No. The MPXWBTA is designed specifically for Pelco MPX Series cameras. Verify your camera model against the MPX product family before purchase.
Q: Can I install the MPXWBTA on a parapet with load-bearing concerns?
A: You must verify structural capacity before installation. Consult your facilities team or a structural engineer to confirm the parapet or ceiling can safely support the combined weight of the bracket and camera.
Q: Does the MPXWBTA support outdoor weather?
A: The bracket itself is IP66-rated and handles outdoor exposure, rain, and dust. However, your camera must also meet or exceed IP66 for a fully sealed outdoor deployment.
Q: What cable types does the MPXWBTA accommodate?
A: The bracket supports standard PoE+ Ethernet cabling and auxiliary connections required by the mounted camera. Plan cable routing from the ceiling or parapet to your network infrastructure during the design phase.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've installed hundreds of parapet and ceiling mounts across commercial properties, and the Pelco MPXWBTA solves a real constraint: overhead camera positions that standard wall brackets can't handle. What sets the MPXWBTA apart is that it's purpose-built for MPX Series integration, not a generic bracket forced into service. The IP66 rating on the bracket itself is straightforward protection against weather, but don't assume it makes your entire camera assembly weatherproof — your MPX camera must meet the same or higher rating.
Technical Highlights:
- IP66 environmental rating on the bracket: Direct rain and dust exposure are managed, but you're dependent on the camera's own IP rating to achieve sealed outdoor performance. Most MPX cameras are IP66 or better, but verify before commit.
- NDAA Section 889 compliance: If you're bidding government work, this certification is already baked in — one approval box checked before the camera order even arrives.
- MPX mounting interface: No guesswork on compatibility. The MPXWBTA uses the standard Pelco interface for the entire MPX family, so your hardware spec is clean and your integrator won't spend hours troubleshooting a wrong bracket.
Deployment Considerations:
- Structural load is the gotcha: Parapets and ceiling joists vary wildly. A 10-pound camera on a degraded parapet can become a liability. Always get facilities or structural sign-off on load capacity before installation. I've seen two installations where load ratings were skipped and brackets were removed — don't let that happen on your project.
- Cable routing from overhead is labor-intensive: Budget conduit, cable trays, or penetrations from the camera location down to your network closet or rack. This work often doubles the on-site labor cost. Engage your cabling contractor early to plan the path.
- Warranty covers the bracket, not the camera: The 1-year coverage is standard for mounting hardware. Your MPX camera will have its own (usually longer) manufacturer warranty.
Use the MPXWBTA when overhead surveillance is a hard requirement — perimeter ledges at warehouses, retail ceiling coverage, institutional building corners where wall mounting creates blind spots. It's also the right choice for government and critical-infrastructure projects because NDAA compliance is already certified. Skip it if wall mounting or pendant solutions are viable; simpler is always cheaper.
