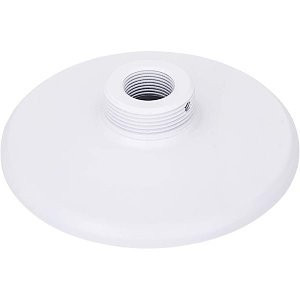

Pelco IMV-PA Pendant Mount Adapter for Sarix Value Minidomes
The Pelco IMV-PA is a pendant mount adapter engineered to convert surface-mounted Sarix Value minidomes into pendant drop-rod or arm configurations. This accessory solves a specific installation problem: when ceiling-mounted surface boxes are impractical due to high ceilings, exposed structural obstacles, or maintenance access constraints, the IMV-PA drops your camera down on conduit or a pendant arm to the sight line where it's actually useful.
Key Features
- Surface-to-Pendant Conversion: Transforms any compatible Sarix Value minidome from surface-mount orientation to pendant drop-rod or arm mounting — critical for warehouses and atriums where mounting directly to high ceilings leaves the camera shooting over merchandise or equipment.
- High-Ceiling Deployment Support: Eliminates the reach limitation of surface-mounted boxes. Pendant arms can extend 6–15 feet below the mounting point, positioning the camera at eye level or merchandise height where detection actually works.
- Warehouse and Gymnasium Ready: Purpose-built for facilities with exposed structure, steel beams, and ductwork that complicate traditional surface mounting. Pendant arms clear obstacles and avoid cable routing headaches.
- Atrium and Multi-Story Spaces: Works in open vertical spaces where a single mounting point serves multiple levels or sightlines — the pendant arm can be repositioned or angled without disturbing the overhead infrastructure.
- NDAA Section 889 Compliance: Meets U.S. federal procurement restrictions on supply chain origin. Mandatory for government, education, and regulated enterprise projects.
- Seamless Sarix Value Integration: Designed for Pelco IP cameras in the IMV Series with varifocal lens Sarix Value minidomes. No firmware updates or configuration changes required — mechanical fit and electrical pass-through are transparent to the camera and network.
Installation & Deployment Context
The IMV-PA mounts to a pendant arm or drop rod that attaches to ceiling or beam structure. The camera connects to the adapter, which routes power and network cabling down the arm to your PoE switch or inline injector. Allow adequate cable service loop inside the pendant arm (typically 6–12 inches coiled) to prevent connector strain during installation or maintenance — this small detail prevents field failures when technicians adjust the camera angle or swap it years later.
Verify adapter compatibility with your exact Sarix Value model before ordering. Pelco also manufactures the IJTFV-PA for broader Sarix Value variant support; if your camera model is not explicitly listed for the IMV-PA, check the IJTFV-PA compatibility matrix to avoid a site visit with incompatible hardware.
Warranty & Support
Backed by a 1-year warranty and Pelco's global support network. Enterprise deployments receive priority technical support through authorized resellers.
Frequently Asked Questions
Q: Which Sarix Value cameras is the IMV-PA compatible with?
A: The IMV-PA is designed for Pelco minidome cameras in the IMV Series featuring varifocal lenses. Verify your specific model against the compatibility list before purchase. The IJTFV-PA may be required for certain variants.
Q: Does the IMV-PA support PoE power?
A: Yes. The adapter passes PoE++ power and network connectivity from your switch or injector down the pendant arm to the camera. No separate power supply is needed.
Q: Is the IMV-PA NDAA Section 889 compliant?
A: Yes. The IMV-PA meets NDAA Section 889 compliance requirements for U.S. federal and regulated procurement.
Q: What cable length do I need for a pendant drop installation?
A: That depends on your arm height. Plan for the full distance from the ceiling-mounted junction box to the camera location, plus 6–12 inches of service loop inside the pendant arm for cable relief and future adjustments.
Q: Can I use the IMV-PA with my existing surface-mount camera box?
A: The IMV-PA converts surface-mounted Sarix Value cameras to pendant orientation. If you already have a surface-mount box installed, you would need to remove it and install the camera directly on the IMV-PA adapter instead.
Q: Does the adapter require any configuration or firmware updates?
A: No. The IMV-PA is a passive mechanical and electrical interface. The camera operates identically once mounted to the adapter.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The IMV-PA solves a real problem I see in warehouse and atrium deployments: the camera you need is on the ceiling, but the sightline you need is 10 feet below it. A surface-mounted box at peak ceiling height is useless for merchandise-level detection. The IMV-PA pendant adapter drops your Sarix Value minidome to where it works, and does it without requiring a second power supply or a firmware reset.
Technical Highlights:
- Pendant Drop-Rod Mounting: Converts surface-mount orientation to pendant arm or conduit drop, positioning the camera at eye level or merchandise height instead of overshooting your target zone by 10–20 feet.
- PoE++ Power and Data Pass-Through: The adapter carries full PoE++ capability down the pendant arm; no separate injector or power supply needed at the camera if your switch supports PoE++.
- NDAA Section 889 Compliance: Critical for government, education, and regulated entities. This adapter meets that requirement — a simple detail that eliminates a sourcing headache on a federal project.
Deployment Considerations:
- Pendant arms require solid ceiling-mount anchors. Budget for structural verification if you're working on an older building or in high-vibration environments (near HVAC units, heavy equipment). A slack pendant arm is a liability.
- Cable routing is your responsibility. Leave 6–12 inches of coiled slack inside the arm to prevent connector strain during angle adjustments or future camera swaps. Tight cable kills connectors.
- Verify compatibility with your exact Sarix Value SKU before order. The IMV-PA supports the IMV Series varifocal lens variants, but Pelco's Sarix Value family is large. If you have an IJTFV or other variant, you may need the IJTFV-PA instead. Check the part number against your camera's label.
Deploy the IMV-PA when you have high ceilings, exposed structure, or multi-level sightlines that make surface mounting impractical. For warehouses, warehouse automation and security systems, and atriums, this is the right tool. For tight indoor spaces with low ceilings, surface mounting the camera directly is usually simpler and cheaper.
