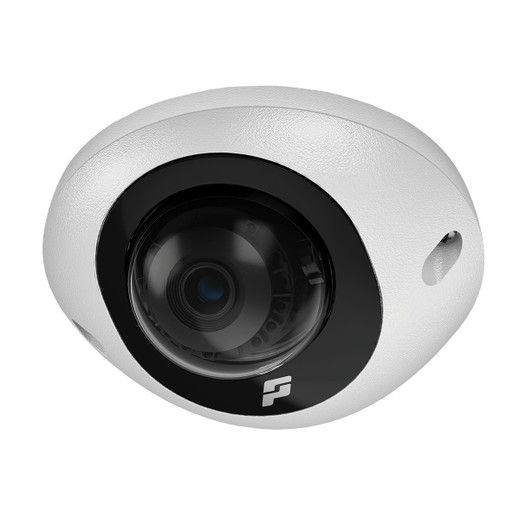

Pelco IJV223-1ERS Sarix Value 2 2MP Vandal Dome
The Pelco IJV223-1ERS is a compact fixed-lens vandal-resistant dome camera from the Sarix Value 2 series, designed for small- to mid-size commercial deployments where durability and straightforward integration matter. Built with a 1/2.8" CMOS sensor and 3mm wide-angle lens, it delivers 2MP resolution at 30 fps—sufficient for facial and license plate identification at close range in lobbies, retail corridors, and warehouse environments. The IK09 vandal rating and dual IP52/IP66 environmental sealing make it a credible choice for both indoor protected areas and outdoor covered installations exposed to weather and intentional impact.
Key Features
- 2MP resolution at 30 fps: Delivers identifiable detail in standard coverage zones without the bandwidth overhead of 4MP or higher—meaningful when deploying across a dozen or more cameras on a modest recorder.
- H.265 and H.264 dual encoding: H.265 cuts storage and network bandwidth by approximately 50% compared to H.264 alone, reducing total cost of ownership on 24/7 recording systems.
- True Wide Dynamic Range (WDR): Handles mixed lighting conditions—bright windows paired with dim interior spaces—common in retail entries and lobbies with exterior glass exposure.
- IK09 vandal-resistant dome housing: Protects against moderate intentional impacts and rough handling in public-access zones without the cost of IK10 models.
- IP52 (indoor) or IP66 (outdoor) environmental rating: IP52 blocks dust and water splashes; IP66 withstands direct rain and heavy splashing. Skip this model if you need IP67 (temporary submersion) or higher.
- 3mm fixed lens with F1.4 aperture: Provides wide-angle coverage suited to small and medium rooms; the 90° horizontal field of view works well for short hallways and single-zone lobbies. Not suitable if you need adjustable focal length or narrow monitoring of distant objects.
- PoE (IEEE 802.3af) power: Draws under 13W, so it runs on standard 802.3af ports without straining your switch's budget or requiring separate power infrastructure.
- Day/night capability: Integrated IR illumination (specifications not detailed in evidence) enables usable video in low-light corridors and loading areas during evening and night hours.
- microSD card slot: Local video backup on removable storage—useful for isolated remote locations or as redundancy alongside central NVR recording.
- ONVIF Profile S and Profile T compliance: Integrates with third-party VMS platforms (Milestone, Genetec, etc.) alongside Pelco VideoXpert. Profile T adds streaming and device management features.
- HTTPS encryption: Secures stream delivery and API access, addressing baseline cybersecurity requirements in multi-vendor environments.
- Operating range -10°C to +60°C (-14°F to +140°F): Covers temperate indoor and mild-climate outdoor covered installations; not rated for extreme cold or heat without additional environmental enclosures.
- 5-year manufacturer warranty: Standard support window for this product class; verify with your reseller for extended service options.
- NDAA Section 889 compliant: Meets U.S. federal procurement restrictions on Chinese surveillance equipment—required for certain government and critical infrastructure projects.
Integration and Deployment
Surface-mount or flush-mount installation using standard Sarix Value adapter brackets (sold separately). Single Ethernet run supplies both power and video, eliminating the need for separate 12VDC or PoE+ injectors. The IJV223-1ERS (often searched as IJV223 1ERS) works alongside Pelco IP cameras in mixed Sarix Value and higher-end Sarix Pro deployments, and integrates seamlessly into third-party network video recorder systems via ONVIF.
When to Choose a Different Model
If your application requires motorized zoom, pan/tilt, or fixed narrow-angle coverage of distant objects, step up to the Sarix Pro 4 or Sarix Enhanced series. For applications demanding 4MP or higher resolution—such as large retail spaces, parking lots, or perimeter monitoring—consider a 4MP or 5MP variant in the same Sarix family. If full submersion (IP67) or extreme environmental hardening is needed, consult Pelco's industrial or explosion-proof series.
Typical Applications
- Retail and shopping center entry points, corridors, and stockroom monitoring
- Corporate and office building lobbies and hallways
- Schools and educational facility corridors and common areas
- Hospitality venues including hotel hallways and public spaces
- Warehouse and light industrial facility monitoring
Frequently Asked Questions
Q: Is the Pelco IJV223-1ERS NDAA Section 889 compliant?
A: Yes. The IJV223-1ERS is NDAA Section 889 compliant, making it eligible for federal and critical infrastructure projects with purchasing restrictions on Chinese-origin surveillance equipment.
Q: What is the warranty on the IJV223-1ERS?
A: Pelco provides a 5-year manufacturer warranty on the IJV223-1ERS. Extended service plans may be available through authorized resellers.
Q: Can the IJV223-1ERS integrate with Milestone XProtect or Genetec?
A: Yes. ONVIF Profile S and Profile T compliance enables integration with third-party VMS platforms including Milestone XProtect and Genetec, alongside native Pelco VideoXpert support.
Q: What is the maximum IR range on the IJV223-1ERS?
A: IR range specifications are not detailed in the available product documentation. Consult the manufacturer datasheet or contact technical support for precise IR coverage distance.
Q: Does the IJV223-1ERS support motion detection or video analytics?
A: The available evidence does not specify on-camera analytics capabilities. For advanced motion detection or edge-based analytics, consult the full technical datasheet or consider stepping up to the Sarix Pro 4 series.
Q: How much power does the IJV223-1ERS draw?
A: The IJV223-1ERS draws under 13W via standard IEEE 802.3af PoE, so it operates on any standard PoE switch port without requiring PoE+ or separate power infrastructure.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The IJV223-1ERS hits a real sweet spot for retrofit and new small-footprint installs. You get vandal-resistant construction and outdoor-grade sealing without the complexity or cost of motorized optics or edge analytics. The 3mm lens and 2MP sensor are honest about what this camera does: it covers corridors, lobbies, and moderate-distance identification in spaces up to roughly 30 feet. H.265 encoding is the underrated win here—cutting your bitrate in half matters when you're running twelve of these on a single recorder.
Technical Highlights:
- H.265 dual-codec compression: Reduces bandwidth and storage by ~50% versus H.264 alone. On a 24/7 multi-camera system, this translates to real savings in NVR capacity and network headroom—especially valuable on sites with modest internet or recorder resources.
- IK09 vandal rating with IP52/IP66 flexibility: You deploy the same camera indoors in its IP52 configuration or outdoors under eaves in IP66 mode. That flexibility reduces SKU sprawl and simplifies inventory. IK09 stops vandals short of sledgehammer-level assault, but it's not military-grade hardening.
- PoE (802.3af) under 13W: Eliminates the need for PoE+ or remote injectors on most enterprise switches. For large deployments, that means no strain on power budgets and no separate power runs to install and maintain.
Deployment Considerations:
- The 3mm fixed lens is wide (roughly 90° horizontal) but non-adjustable. Verify your mounting height and desired coverage area before committing—you cannot remotely refocus or zoom if you misjudge lens fit.
- IR range is not specified in available documentation. If night-vision performance is critical, request a demo or consult the full datasheet before deploying in unlit areas.
- This model is solid for NDAA-restricted procurements (federal, military, critical infrastructure). If your buyer has no compliance mandate, you might find lower-cost alternatives—but you lose the compliance certification and the 5-year warranty commitment.
Deploy the IJV223-1ERS in retail corridors, office lobbies, school hallways, and warehouse aisles where you need durable, standards-compliant coverage without motorized complexity. It's not a perimeter PTZ and it's not a high-res ticket-reader—it's a workhorse fixed dome that keeps costs and maintenance predictable.
