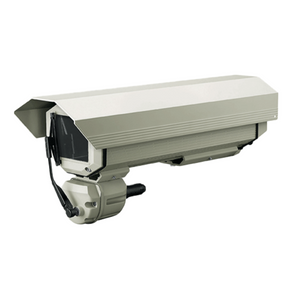

Pelco HTG37K2A000 Camera Housing 365mm Heater

Pelco HTG37K2A000 Camera Housing 365mm Heater

The Pelco HTG37K2A000 is a robust outdoor camera housing designed for low-voltage installations. Featuring a 365mm length with integrated sun shield and internal heater, this enclosure operates on 12 Vdc or 24 Vac power, making it ideal for surveillance deployments where AC mains power is unavailable or undesirable.

Key Features

• 365mm housing length accommodates standard box cameras and lenses
• Integral sun shield reduces thermal load and glare interference
• Internal heater maintains optimal operating temperature in cold environments
• Dual voltage support: 12 Vdc or 24 Vac input
• NDAA Section 889 compliant for government procurement
• 5-year warranty for extended coverage

Technical Highlights

Designed for outdoor installations with existing low-voltage DC or AC infrastructure, the HTG37K2A000 eliminates the need for AC mains wiring in remote locations. The integrated heater prevents condensation and maintains camera performance during temperature extremes. The sun shield reduces thermal stress on internal optics, extending equipment lifespan and improving image quality in high-glare environments.

Applications

Suited for perimeter surveillance, remote sites, and facilities with established 12 Vdc or 24 Vac power distribution. Commonly deployed at utility substations, parking areas, warehouse exteriors, and other outdoor locations where power infrastructure is limited.

Note: Verify camera body and lens dimensions fit within the 365mm interior. For stainless steel corrosion resistance, consider Pelco's NX Series stainless housings. For PoE-powered installations, alternative models such as the NXM36K2700 may be more appropriate.
