Description

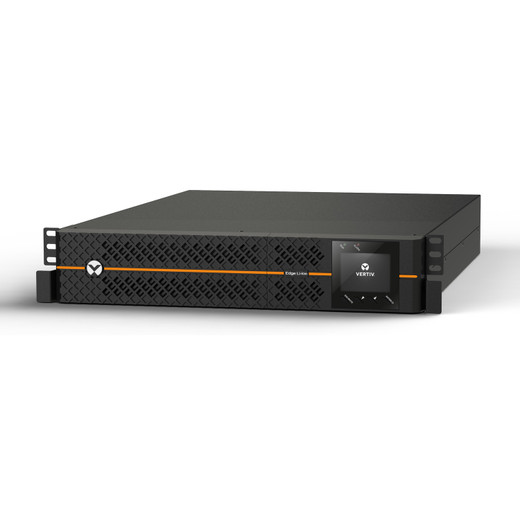

Vertiv PBRGXT34-1500VA Concise Descriptor

Overview

The Vertiv PBRGXT34-1500VA is an on-line double conversion UPS designed to deliver clean, reliable power to critical equipment. Its compact rack/tower form factor makes it suitable for deployments where space is constrained, such as server closets or network edge locations. The unit provides 1500VA/1350W of power, ensuring continuous operation during voltage fluctuations or brief outages, protecting sensitive electronics from data corruption and hardware damage. The integrated graphic LCD simplifies status monitoring and configuration.

Compatibility

This UPS is designed to protect a wide range of IT and network infrastructure. It features six 5-15R output receptacles, with four individually programmable outlets for granular control over device power-up sequences or load shedding. It is compatible with standard 120V input power and can be configured to output 110/115/120/125VAC. Optional communications cards (Vertiv™ Liebert® IntelliSlot™ RDU120) enable SNMP and web management, integrating it into existing network monitoring systems. It supports USB, RS485, and RS232 serial connections for out-of-band management.

Installation Notes

The Vertiv PBRGXT34-1500VA operates within a temperature range of +32 to +104 °F (0 to 40 °C). It requires standard NEMA 5-15P input wiring. The unit's flexible design allows for both rack and tower mounting. For advanced network management, an optional communications card is required.

What's in the Box

  • 1x Vertiv PBRGXT34-1500VA UPS
  • 1x Power Cord (NEMA 5-15P)
  • 1x Tower Stand Kit
  • 1x Rack Mounting Kit
  • 1x USB Cable
  • 1x Serial Cable (RS232)
  • 1x User Manual
Specifications
Power Rating: 1500VA /1350W
Input Voltage Range: Typical: 120V / Range: 60-150V
Output Voltage Range: 110/115/120/125VAC; (user-configurable); ±3%
Efficiency: Up to 98% Active ECO Mode; up to 95% on-line mode
Wiring: Input: NEMA 5-15P A; Output: 5-15R × 6
Dimensions: 85 mm
Interface Options: Optional communications card (Vertiv™ Liebert® IntelliSlot™ RDU120), USB, RS485, RS232, terminal block, external battery connector
Protocols: SNMP and web management enabled with optional Vertiv™ Liebert® IntelliSlot™ RDU120 communications card; serial connection for out-of-band management
Control Panel: Colored graphic LCD with gravity sensing orientation, provides insight to UPS status for easy installation, configuration and operation
Operating Temperature: +32 to +104 °F (0 to 40 °C)
General: Output Receptacles: 5-15R × 6; 4x individually programmable receptacles and 2x non-programmable receptacles
Listings: ENERGY STAR® 2.0 certified, WEEE, RoHS2, REACH, UL 1778 4th edition and CSA 22.2 No. 107.1
UPS Topology: On-line double conversion UPS; compact and flexible rack/tower form factor
Brand: Vertiv
MPN: PBRGXT34-1500VA
Type: POS Stand
Connectivity: USB
Power: 125V AC
