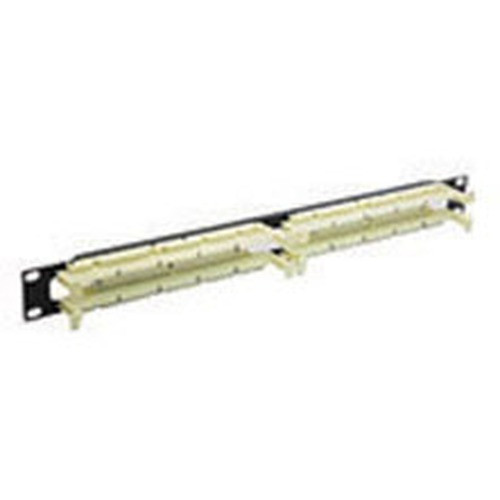

International Connectors and Cable IC110RM100 100 Pair 1U Patch Panel

Overview

The International Connectors and Cable IC110RM100 is a 1U rack-mountable patch panel designed for terminating 110-style punch-down connections. This panel provides a structured and organized method for managing up to 100 pairs of telecommunications or data cabling within a standard 19-inch rack. It's essential for clean installations in network closets, data centers, or any environment requiring efficient cable termination and cross-connection points. The IC110RM100 simplifies moves, adds, and changes by centralizing cable management.

Compatibility

This patch panel is designed for use with standard 110-style punch-down tools and connectors. It is compatible with a wide range of Category 3, Category 5e, Category 6, and Category 6A twisted-pair cabling. It serves as a termination point for structured cabling systems used in voice, data, and low-voltage security applications. It is not specific to any single camera or NVR manufacturer but is a foundational component for any structured cabling deployment.

Installation Notes

Installation requires a standard 19-inch rack or wall-mount bracket. Use a 110-style punch-down tool for terminating wires onto the IDC (Insulation Displacement Connector) blocks. Ensure proper cable management techniques are employed to maintain bend radius and prevent signal degradation. The panel occupies 1U of vertical rack space.
