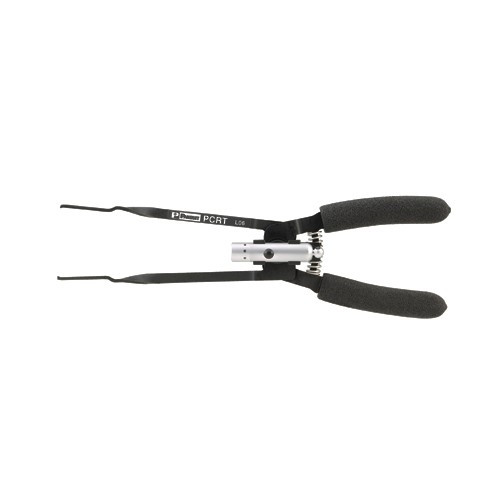

Panduit PCRT1 Patch Cord Removal Tool

High-density patch panels and switch ports create a maintenance nightmare when release tabs sit flush against neighboring cables. The Panduit PCRT1 Patch Cord Removal Tool eliminates finger strain, broken release tabs, and accidental disconnects during moves, adds, and changes in populated network closets and data center racks. Engineered for professional installers and IT infrastructure teams working with RJ45 patch cords in tight spacing, this tool delivers consistent release-tab actuation without damaging connectors or disturbing adjacent links.

Key Features

Ergonomic handle design reduces repetitive-strain injuries on large MAC projects

Precision tip engages RJ45 release tabs in high-density 48-port panels where finger access is blocked

Black finish resists wear and maintains professional appearance in client-facing environments

Compact 0.61" profile fits in tool pouches and fits between rack rails

Single-piece construction eliminates moving parts that fail under field use

Network technicians working 48-port patch panels with 0.5" cable management know the problem: removing a single patch cord requires prying fingers between adjacent cables, risking damage to neighboring release tabs or accidental unplugs. The PCRT1's 15mm-height tip slides into the gap between connectors and applies controlled pressure to the release tab's actuation point, freeing the plug without lateral force on surrounding cables. The tool's handle transfers force through a rigid shaft, so you're not relying on fingernail strength or improvised screwdrivers that snap tabs. For installations running Category 6A or shielded patch cords with stiffer boot profiles, the mechanical advantage matters—continuous MAC work on a 42U rack can mean 200+ plug removals in a shift.

Deployment context: enterprise network closets running Panduit Mini-Com or NetKey patch panels see the biggest return, where 1U horizontal cable managers leave just enough clearance for the tool's profile but not enough for unassisted finger access. Data center hot-aisle work benefits from reduced time per disconnect—a 5-second task instead of 20 seconds wrestling a plug translates to measurable labor savings across hundreds of ports during infrastructure refreshes. The tool pairs with Panduit's structured cabling ecosystem (Mini-Com modules, Opti-Jack terminators, duct-and-cover raceway), but works equally well with any manufacturer's RJ45 termination in congested horizontal or backbone distribution. Cost analysis: a single broken release tab on a $12 Category 6A patch cord pays for the tool; avoiding one service call from an accidental unplug during a Friday afternoon MAC job justifies stocking one per technician.

ANSI/TIA-568 structured cabling standards require maintaining installed cable plant integrity during moves and changes. Using the correct removal tool instead of improvised methods—flathead screwdrivers, pocket knives, or brute-force yanking—protects the 100-meter channel's performance margin by preventing micro-damage to plug retention clips and conductor seating. Professional network installers treating this as a consumable hand tool, not a nice-to-have accessory, consistently report lower callback rates and faster project completion on high-density fiber-backbone/copper-access builds.
