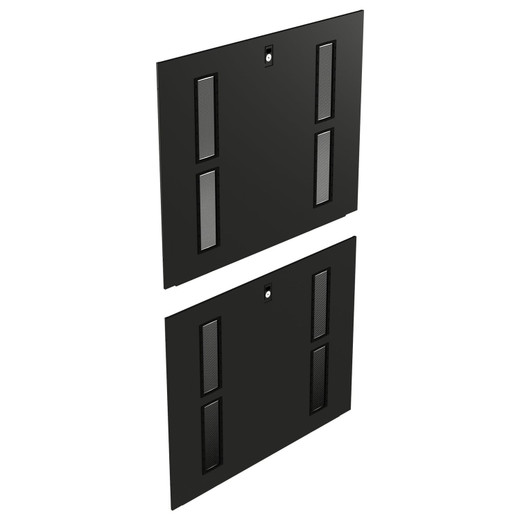

Vertiv VRA6054 Pass-Through Side Panels 42U x 1100mm
Overview
The Vertiv VRA6054 pass-through side panels are purpose-built enclosure accessories for 42U Vertiv VR-series open-frame and enclosed racks with 1100mm depth. If you're running high-density cable or airflow management in a datacenter row or network equipment room, side panels that allow cable pass-through — rather than solid blanks — are the detail that separates a clean installation from one that fights you during every maintenance cycle. These panels install on the VR3100 enclosure and are sold as a pair, covering the full 42U height.
Key Features
- 42U Full-Height Coverage: Spans the entire 42U rack height in a single pair, eliminating partial-coverage patchwork that leaves gaps at the top or bottom of the enclosure. No filler panels needed alongside.
- 1100mm Depth Match: Sized specifically for 1100mm-deep VR-series racks — not the 1200mm variant (VRA6055). Verify your rack depth before ordering; fitting a 1200mm panel on a 1100mm frame will leave an overhang that prevents proper door mounting.
- Pass-Through Design: Unlike solid side panels, the pass-through construction allows cables, cooling airflow paths, or conduit to route between adjacent racks without removing the panel. This matters in high-density rows where inter-rack cabling between adjacent enclosures is routine.
- Black Finish: Standard black powder coat matches the VR-series rack family aesthetic and datacenter floor conventions. Consistent visual presentation across mixed-depth rows where 1100mm and 1200mm racks coexist.
- VR3100 Compatibility: Designed and verified for the Vertiv VR3100 rack enclosure. Check the VR-series rack accessories compatibility matrix before pairing with other Vertiv enclosure models — not all VR-series frames share the same side panel attachment points.
- Family Integration: Part of a complete VR accessory ecosystem that includes split side panels (VRA6009), top panels (VRA6017/VRA6018), bottom panels, caster kits, and PDU brackets — allowing incremental buildout of a fully enclosed rack from an open-frame base without sourcing components from outside the VR family.
Compatibility and Integration
The VRA6054 is confirmed compatible with the Vertiv VR3100 enclosure. Within the Vertiv VR-series accessory line, the 42U x 1100mm pass-through panel sits alongside the VRA6009 split side panel (also 42U x 1100mm) — the difference being that pass-through panels allow cable routing through the panel face, while split panels divide the height into two sections for easier installation in constrained spaces. If your rack depth is 1200mm, order VRA6055 instead. For 45U or 48U frames, see VRA6029/VRA6031 respectively.
When building out a complete enclosure, pair these side panels with the appropriate top panel (VRA6017 for 600mm-wide, VRA6018 for 800mm-wide frames at 1100mm depth) and bottom panel (VRA6037 or VRA6039) to achieve a fully enclosed rack with managed airflow boundaries. The pass-through feature is especially useful in network switch rows where horizontal inter-rack cabling is dense.
Frequently Asked Questions
Q: What rack is the VRA6054 compatible with?
A: The VRA6054 is confirmed compatible with the Vertiv VR3100 rack enclosure. Always verify attachment-point compatibility with other VR-series frames before ordering.
Q: What is the difference between the VRA6054 and the VRA6055?
A: The VRA6054 fits 1100mm-deep racks; the VRA6055 is the 1200mm-depth variant. Both are 42U height. Ordering the wrong depth will result in panel overhang that interferes with door mounting.
Q: How does the VRA6054 differ from the VRA6009 split side panel?
A: Both cover 42U x 1100mm racks. The VRA6054 is a pass-through panel that allows cables to route through the panel face. The VRA6009 is a split panel, meaning the panel divides into two sections for easier handling and installation in tight spaces. They are not interchangeable based on installation preference and cable management requirements.
Q: Are there pass-through side panels for 45U or 48U VR racks at 1100mm depth?
A: Yes — VRA6029 covers 45U x 1100mm and VRA6031 covers 48U x 1100mm. The 1200mm-depth equivalents are VRA6030 and VRA6032.
Q: Do the VRA6054 panels include mounting hardware?
A: Package contents are not specified in the available product documentation. Contact your supplier to confirm what hardware ships with the panel pair.
The VRA6054 is one of those parts that gets overlooked until someone orders the wrong depth variant and the doors won't close. At 42U height and 1100mm depth, it's a precise fit for the VR3100 — not a universal panel, and that specificity is the point. The pass-through feature is what separates it from the VRA6009 split panel in the same size class: you're trading two-piece install convenience for the ability to route cables laterally without removing the panel during adds, moves, and changes.
Technical Highlights:
- 42U Full-Height Span: A single-piece panel covering the full 42U height means no stacked partial panels, no alignment gaps, and a cleaner finished enclosure — important when the rack is customer-facing or in a co-lo cage with visibility requirements.
- Pass-Through Construction: Cable pass-through capability allows inter-rack horizontal cabling to route without panel removal — a real time-saver during staged deployments where new cable runs are added to live racks.
- 1100mm Depth Specificity: The 1100mm sizing targets VR3100 frames exactly. The 1200mm variant is VRA6055 — a common ordering error on mixed-depth rows. Double-check rack depth before requisitioning.
Deployment Considerations:
- In rows mixing 1100mm and 1200mm racks, label or color-tag your panel inventory at receiving — VRA6054 and VRA6055 look identical until you're on the floor trying to mount them.
- If your installation requires splitting the panel height for two-person installation in a low-clearance overhead, the VRA6009 split panel is the better pick for the same rack depth — the VRA6054 is a single-piece panel and requires full vertical clearance to seat correctly.
Best fit for datacenter buildouts using Vertiv VR3100 enclosures in 1100mm-depth rows where inter-rack cabling density makes panel removal during maintenance a recurring cost. Hospitals, colocation facilities, and enterprise server rooms running structured cabling between adjacent racks will get the most value from the pass-through design.
