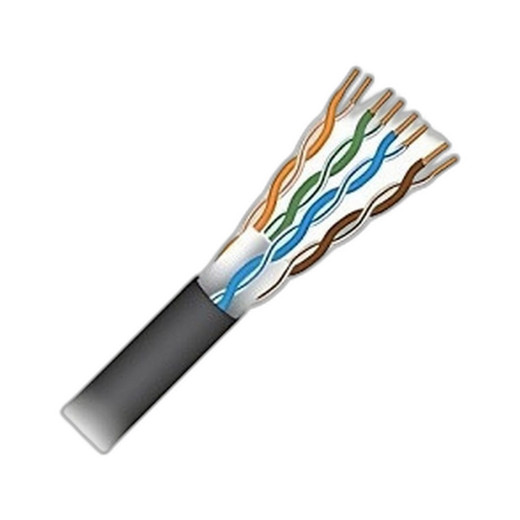

Paige Electric 9P234C64B1 Cat 6 Plenum Unshielded Cable
Overview
The Paige Electric 9P234C64B1 is a 1000-foot spool of Category 6 unshielded twisted pair (UTP) cable engineered for commercial network infrastructure where fire code compliance is non-negotiable. The plenum-rated jacket means you can run this cable through air-handling plenums above drop ceilings and in return-air pathways without triggering code violations — a mandatory requirement in most jurisdictions for any cable in those spaces. The SOL (Solid Outer Layer) construction provides durability during installation and handling, and the UTP design keeps costs lower than shielded alternatives while still delivering Cat 6 bandwidth performance (up to 250 MHz).
Key Features
- Plenum-Rated Jacket: Meets fire code requirements (typically NFPA 262 or equivalent) for installation in air-handling spaces — skip this if your run is in standard conduit or walls, but mandatory if you're running above suspended ceilings or through return-air plenums.
- Category 6 Unshielded Twisted Pair (UTP): Supports Gigabit Ethernet (1000 Mbps) at distances up to 100 meters — sufficient for backbone runs between network switches and patch panels in data centers, server rooms, and commercial buildings.
- Solid Outer Layer (SOL) Construction: More robust jacket than standard UTP during bulk cable pulls and termination work, reducing jacket damage and maintaining signal integrity across the full 1000-foot spool.
- 1000-Foot Spool Format: Reduces the number of connection points and splice locations needed compared to pre-terminated cables, lowering overall infrastructure cost for large deployments and simplifying inventory management.
- Black Jacket: Standard color for telecom and network cable runs; integrates visually into most infrastructure installations and simplifies cable tracing in congested cable trays.
- RJ45-Compatible Termination: Works with standard RJ45 connectors and patch panels — no special tooling or adapters required, so your existing termination practices and skills transfer directly.
Integration & Compatibility
The 9P234C64B1 integrates into any standard Ethernet infrastructure requiring bulk cable supply. Deploy it in commercial office buildings, data centers, telecom closets, and warehouse automation systems where plenum compliance is mandated by local building codes. Pair it with standard RJ45 termination hardware, network switches, and patch panel infrastructure. Because this is UTP (unshielded), grounding considerations are simpler than shielded cable — you do not need to terminate shield grounds at both ends, reducing installation complexity in high-noise RF environments where shielded cable would otherwise be overkill.
When to Consider a Different Cable
If your run does not pass through an air-handling plenum, standard non-plenum Cat 6 UTP will cost less and perform identically. If you face significant EMI/RFI in the installation environment (heavy industrial, RF broadcast areas, dense power distribution), evaluate shielded Cat 6 or Cat 6A variants instead — the UTP construction here trades noise immunity for cost savings. If you need future-proofed bandwidth beyond 1 Gbps (10 Gbps multi-camera systems, 25 Gbps data center migrations), Cat 6A or Cat 7 unshielded plenum cable will handle higher frequencies with lower crosstalk, though at higher material cost.
Frequently Asked Questions
Q: Is the 9P234C64B1 compliant with building fire codes for plenum installations?
A: Yes. The plenum-rated jacket is designed to meet fire safety standards (typically NFPA 262) for cable installed in air-handling spaces. Always verify local building code requirements before installation, as jurisdictions may reference different standards.
Q: Can I use this cable for a 10 Gbps network?
A: The 9P234C64B1 meets Cat 6 specifications, which are rated for Gigabit Ethernet (1000 Mbps). While Cat 6 can sometimes carry 10 Gbps over very short distances, it is not certified for reliable 10 Gbps performance. For 10 Gbps deployments, Cat 6A or higher is the correct choice.
Q: What is the difference between the solid outer layer (SOL) construction and standard UTP?
A: SOL construction provides a more durable jacket that resists damage during pulling and termination. Standard UTP is adequate for gentler installations but may show more jacket wear in demanding pulls through crowded cable trays or tight conduit runs.
Q: Do I need grounding or shield termination for the 9P234C64B1?
A: No. This is unshielded (UTP), so there is no shield to ground. Standard RJ45 termination is all that's required — no special grounding hardware or dual-end shield termination like shielded cable would demand.
Q: What is the maximum distance for Gigabit Ethernet over this cable?
A: Cat 6 is certified for Gigabit Ethernet up to 100 meters (approximately 328 feet). If your run exceeds this, use a switch or repeater to extend the link, or upgrade to Cat 6A for longer distances without signal degradation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I spec bulk cable like the 9P234C64B1 when plenum compliance is a hard requirement and long-distance backbone runs matter. The 1000-foot spool eliminates multiple splice points that introduce signal loss and potential failure modes — one continuous run is always better than daisy-chaining shorter cable segments. The SOL jacket is a practical detail that saves headaches during termination, especially in high-density cable tray environments where standard UTP can shred under pulling tension.
Technical Highlights:
- Cat 6 UTP Bandwidth (250 MHz): Delivers 1000 Mbps Gigabit Ethernet certified to 100 meters — more than enough for standard commercial LAN backbones and camera system integration. Know your run distances upfront; if you exceed 100 meters, you'll need intermediate switching or Cat 6A.
- Plenum-Rated Jacket (NFPA 262 or equivalent): Code compliance for air-handling spaces is non-negotiable in commercial builds. Mixing plenum and non-plenum cable in the same plenum path will trigger code violations during final inspection. Verify local AHJ (Authority Having Jurisdiction) standards before procurement.
- SOL Construction: Measurably tougher during installation than standard UTP — reduces jacket splitting and jacket abrasion during pulls through conduit or cable trays. In demanding industrial or telecom closet environments, this translates to fewer reterminations and faster first-time success rates.
Deployment Considerations:
- Plenum cable is typically 15–30% more expensive than standard UTP — verify that your intended run actually passes through a code-mandated plenum space before overbuying. If the cable runs through walls, conduit, or cable trays not in the air-handling path, standard non-plenum Cat 6 will work fine and cost less.
- UTP (unshielded) assumes a reasonably clean electrical environment. If you're pulling this near high-power distribution, VFD motor controllers, or RF broadcast antennas, crosstalk and EMI can degrade performance — shielded Cat 6 or Cat 6A may be the safer choice despite higher cost.
Deploy the 9P234C64B1 for code-compliant backbone runs in commercial office buildings, data centers, and light industrial facilities where plenum air pathways are part of the build design. If your budget is tight and the run does not traverse an air-handling plenum, save money on non-plenum Cat 6. If you're uncertain whether a run is plenum or not, ask your electrician or facilities manager — getting it wrong delays final inspection.
