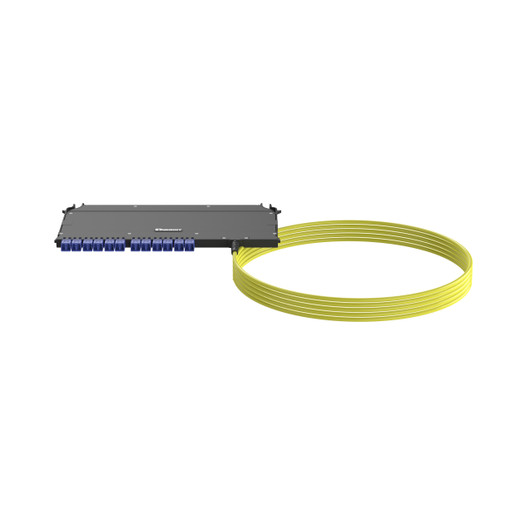

Panduit F9UYPXRNNSNF250 OS2 Fiber Optic Cable

Panduit F9UYPXRNNSNF250 OS2 Fiber Optic Cable

Overview

The Panduit F9UYPXRNNSNF250 is a 24-fiber OS2 Singlemode (9/125µm) pre-terminated fiber optic cable assembly. It is engineered for high-density environments like data centers, telecommunications rooms, and equipment distribution areas where rapid deployment of reliable fiber infrastructure is critical. This cable type supports backbone and horizontal connectivity for 10/40/100 Gbps Ethernet and other high-speed data transmission protocols.

Compatibility

This cable assembly is designed for use with Panduit's Quick-Connect (QC) fiber optic systems and modules. It is compatible with standard fiber optic patch panels, enclosures, and equipment that accept LC or SC style connectors, depending on the specific termination configuration of the PUM (Push-Pull) connectors. Ensure your receiving equipment and patch panels are specified for OS2 Singlemode fiber and the appropriate connector type.

Installation Notes

When installing the F9UYPXRNNSNF250, maintain a minimum bend radius of 10x the cable diameter for the fiber optic cable itself and 20x for the breakout legs to prevent signal degradation. Avoid sharp bends or kinks. Ensure connectors are clean before mating to prevent contamination, which is a primary cause of signal loss. Adhere to TIA-568.3-D standards for installation practices and testing.

Standards

This cable meets TIA-568.3-D, ISO/IEC 11801, and ITU-T G.652.D standards, ensuring interoperability and performance in enterprise and carrier network deployments. The OS2 Singlemode fiber type provides low attenuation for long-haul transmission and future-proofing for higher bandwidth applications.
