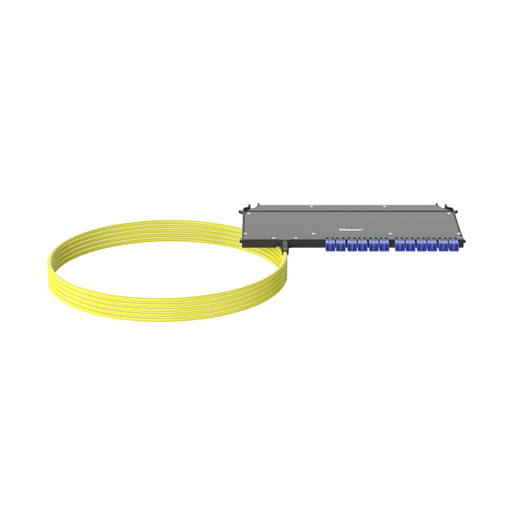

Panduit F9UYPXLNNSNF050 Front-Access Fiber Optic ODF Tethered Cassette Assembly

Overview

The Panduit F9UYPXLNNSNF050 is a FlexCore™ front-access fiber optic cassette assembly designed for high-density fiber management within ODFs. It utilizes OS2 single-mode fiber and terminates 24 fibers, providing a clean interface for network connections. The plenum-rated, polycarbonate construction ensures compliance with building codes for air-handling spaces, making it suitable for critical infrastructure deployments where fire safety is paramount. This cassette is engineered for efficient cable termination and management, simplifying fiber optic network infrastructure.

Compatibility

This cassette assembly is designed to integrate with Panduit's ODF (Optical Distribution Frame) systems that support front-access modules. It features LC Duplex connectors on one end for connecting to active equipment or patch panels, while the other end is unterminated, allowing for direct fusion splicing or termination within the ODF structure. It supports standards including ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), and TIA-604-10 (FOCIS-10), ensuring broad compatibility with industry-standard fiber optic cabling and connectors.

Installation Notes

The cassette has an overall height of 0.46 inches (11.7 mm) and a width of 11.53 inches (292.8 mm), fitting standard ODF footprints. Its plenum (OFNP) flammability rating mandates installation in spaces used for environmental air. Polycarbonate material offers durability and resistance to environmental factors. The unterminated end requires professional splicing or termination procedures. Ensure proper ventilation as per ODF system guidelines.

Expert Analysis
Specifications
Sub Brand: FlexCore™
Color: Black
Connector 1: LC Duplex
Connector 2: Unterminated
Fiber Type: OS2
Flammability Rating: Plenum (OFNP)
Material: Polycarbonate
Fiber Count: 24
Height In: 0.46
Height Mm: 11.7
Width In: 11.53
Width Mm: 292.8
Product Type: Front-Access Fiber Optic ODF Tethered Cassette Assembly
Carton Qty: 0
Package Qty: 1
Standards: ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5, (FOCIS-5), TIA-604-10 (FOCIS-10), RoHS 2002/95/EC compliant, supports IEEE802.3 and ANSI T11.2 (Fiber Channel)
Upc: 61305683677
Cable Category: fiber-optic-systems
Type: Front-Access Fiber Optic ODF Tethered Cassette Assembly
