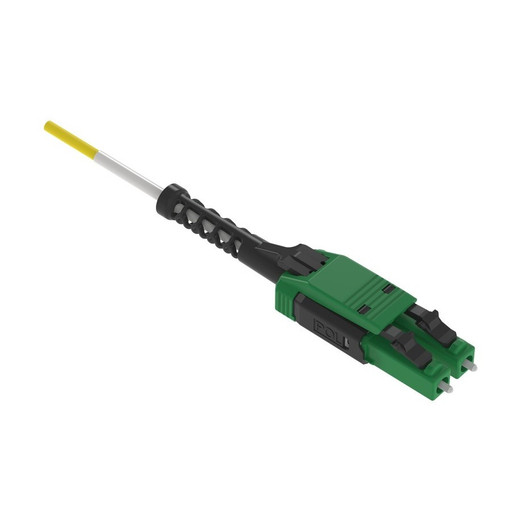

Panduit F92RLU2U2ONM013 LC-LC OS2 Duplex Fiber Cable, 13m

Panduit F92RLU2U2ONM013 Opti-Core OS2 Single-Mode LC Duplex Fiber Patch Cable

The Panduit F92RLU2U2ONM013 Opti-Core fiber patch cable delivers enterprise-grade OS2 single-mode connectivity for 10G, 40G, and 100G data center and telecom installations. This 13-meter duplex cable features APC-polished LC uniboot connectors, optimized insertion loss performance, and LSZH jacketing for plenum and riser installations where fire safety codes demand low-smoke, zero-halogen materials. The compact uniboot design reduces cable congestion in high-density patch panels while maintaining full duplex transmission over 9/125μm single-mode fiber rated for distances up to 10 kilometers at 10 Gigabit speeds.

Key Features

• OS2 single-mode fiber rated for 10G/40G/100G Ethernet over distances up to 10km
• LC duplex APC-polished connectors with uniboot pull-tab design for easy moves and changes
• Optimized insertion loss specification ensures margin for mission-critical links
• LSZH (Low Smoke Zero Halogen) jacket meets plenum fire safety requirements
• 2.0mm cable diameter balances flexibility with durability for rack and cabinet routing
• Yellow jacket color follows TIA-598-D color coding standard for OS2 single-mode fiber
• Exceeds ISO/IEC 11801, TIA-568-C.3, and FOCIS-3/FOCIS-10 connector performance standards
• Factory-terminated and tested by Panduit for guaranteed link performance

Single-mode OS2 fiber is the backbone of modern data center and campus networks, supporting 10 Gigabit Ethernet links up to 10 kilometers and 40/100 Gigabit links over multi-kilometer distances that far exceed multimode capabilities. The Panduit Opti-Core F92RLU2U2ONM013 uses 9/125-micron single-mode fiber with APC (Angled Physical Contact) polishing on both LC connectors. The 8-degree angled endface virtually eliminates back-reflection—critical for high-bitrate coherent optics and analog RF-over-fiber applications where return loss below -60dB is required. Panduit's factory insertion-loss optimization process tests and grades each cable to ensure you're deploying links with margin built in, not cables that barely meet the published maximum IL spec. In a 40G or 100G SR4/LR4 deployment where you're multiplexing four or ten wavelengths over a single fiber pair, that extra 0.1dB of margin can mean the difference between a stable link and intermittent bit errors under temperature fluctuation.

The 13-meter length is purpose-built for intra-row and cross-aisle patching in mid-sized data centers, telecom central offices, and enterprise server rooms. Uniboot LC connectors reduce the cable's footprint at the patch panel by 50% compared to traditional duplex LC cables with separate boots—a real advantage when you're patching 96-fiber modules in a 1U chassis and every millimeter of panel access counts. The pull-boot design lets technicians reverse polarity in the field without re-terminating; pull the tab, rotate the connector body, snap it back in. LSZH jacketing is mandated by NFPA 90A for air-handling spaces and by international building codes (IBC, IFC) for occupied plenums. When fire safety authorities in healthcare, education, and government facilities audit your structured cabling, this cable's LSZH rating and RoHS compliance keep you on the right side of inspection.

The Panduit F92RLU2U2ONM013 is tested to TIA-604-3 (FOCIS-3) endface geometry standards and TIA-568-C.3 channel insertion loss limits, ensuring compatibility with Cisco, Juniper, Arista, and Mellanox 10G/40G/100G optics. Factory test reports verify insertion loss, return loss, and endface geometry for each connector, eliminating the field labor and certification cost of on-site terminations. For integrators building out spine-leaf fabrics, SAN extension links, or 5G fronthaul connections where fiber is the only physical layer that meets distance and bandwidth requirements, Panduit Opti-Core cables provide the quality and traceability that mission-critical infrastructure demands.
