Panduit F92ERANB1SNM020 OS2 2F 1.6MM PC Ofnr Scapc/lcapc STD EA
Overview

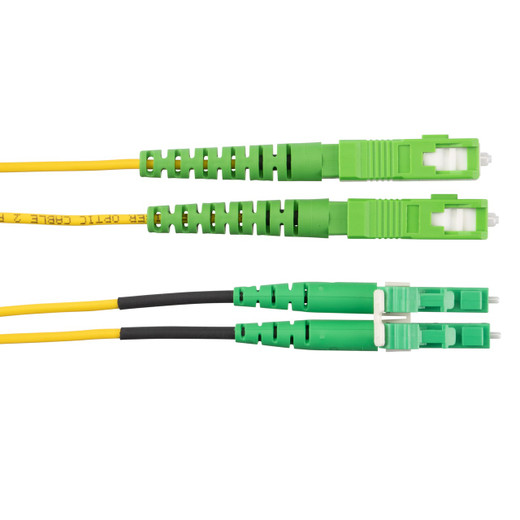

The Panduit F92ERANB1SNM020 is a 20-meter, OS2 single-mode, duplex fiber optic patch cord designed for reliable data transmission in network infrastructure. It features a 1.6mm diameter cable with an OFNR (riser-rated) vertical conductor flammability rating, suitable for in-wall installations. This specific assembly terminates with SC/APC on one end and LC/APC on the other, ensuring compatibility with a wide range of network equipment and providing a standard polarity connection with standard insertion loss.
Compatibility
This patch cord is engineered for use with any network equipment featuring SC/APC and LC/APC ports. It is compatible with Panduit's Opti-Core™ fiber optic systems and general network deployments requiring OS1/OS2 single-mode fiber connectivity. The specific connector types (SC/APC and LC/APC) make it suitable for high-density patching environments and connections between devices like transceivers, patch panels, and network switches that utilize these connector standards.
Installation Notes
The cable diameter is 1.6mm, allowing for tight bend radius management in high-density racks. The OFNR rating indicates suitability for riser pathways within commercial buildings, adhering to EN 60332-1-2 flammability standards. The SC/APC connector provides a physical contact connection, minimizing back reflection, while the LC/APC connector offers a compact form factor for high-density applications. Standard polarity ensures that transmit on one end connects to receive on the other without requiring crossover.
