Panduit OS2 2F 1.6MM PC Lszh Pushpull Lc/sc DEA - F92ELQ1SNSNM048

Panduit F92ELQ1SNSNM048 OS2 2F 1.6MM PC Lszh Pushpull Lc/sc DEA

Overview

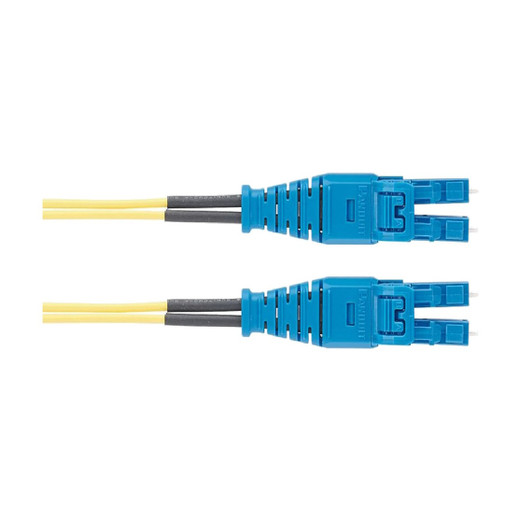

The Panduit F92ELQ1SNSNM048 is a 48-meter (157.5 ft) OS2 singlemode fiber optic patch cable designed for high-density environments like data centers and telecommunications rooms. Its push-pull LC duplex connectors facilitate rapid deployment and secure termination, while the Low Smoke Zero Halogen (LSZH) jacket ensures safety compliance in plenum spaces. This cable provides a robust solution for extending network connectivity where standard copper cabling is insufficient.

Compatibility

This cable is compatible with any equipment utilizing OS2 Singlemode (9/125µm) fiber and LC Duplex connectors. It is suitable for integration into structured cabling systems adhering to TIA-568.3-D, ISO/IEC 11801, and ITU-T G.652.D standards, commonly found in enterprise networking, telecommunications infrastructure, and data center interconnects.

Installation Notes

The 1.6mm cable diameter and LSZH jacket are suitable for installation in plenum-rated pathways. Ensure proper bend radius management (minimum 10x cable diameter for OS2 fiber) to maintain signal integrity. The push-pull connectors provide a tactile click for secure mating, simplifying installation in tight spaces where visual confirmation may be limited.
