Panduit OS2 2F 1.6MM PC Lszh Pushpull Lc/sc DEA - F92ELQ1SNSNM014

Panduit F92ELQ1SNSNM014 OS2 2F 1.6MM PC LSZH PUSHPULL LC/SC DEA

Overview

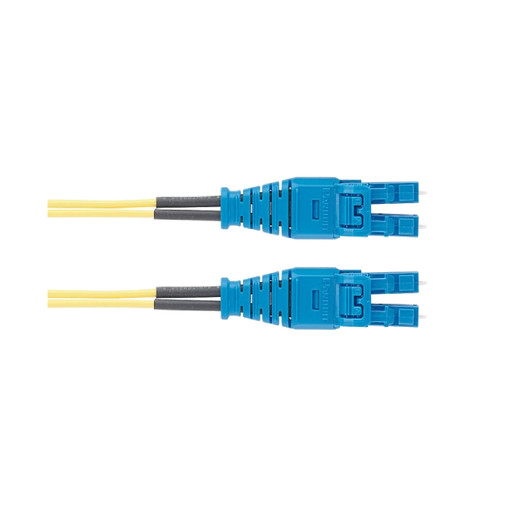

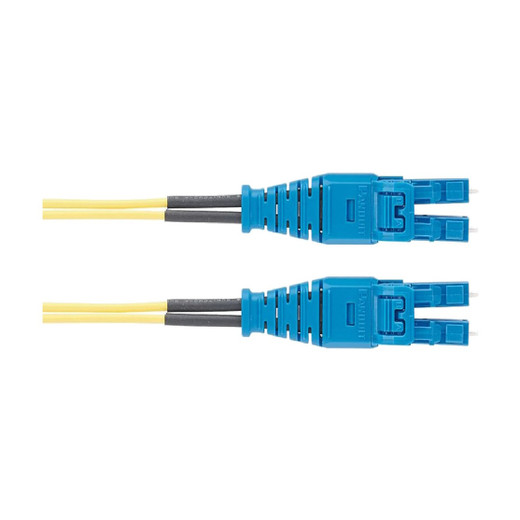

The Panduit F92ELQ1SNSNM014 is a 14-meter (45.9 ft) OS2 Singlemode fiber optic patch cable designed for high-density environments like data centers, telecom rooms, and equipment distribution areas. Its pre-terminated infrastructure facilitates rapid deployment, minimizing installation time and complexity for critical network backbones. The cable features a Low Smoke Zero Halogen (LSZH) jacket, essential for plenum spaces or environments where fire safety regulations mandate reduced smoke and halogen emissions.

Compatibility

This cable utilizes LC Duplex connectors, standard for SFP/SFP+ transceivers and network interface cards in enterprise and carrier-grade networking equipment. It is designed to connect devices requiring OS2 Singlemode fiber, commonly found in 10 Gigabit Ethernet (10GbE), 40GbE, and 100GbE applications, as well as passive optical networks (PON). Ensure your network interface cards, switches, and transceivers support LC Duplex connectors and OS2 Singlemode fiber for seamless integration.

Installation Notes

The cable's 1.6mm outer diameter and LSZH jacket are suitable for routing within conduits, cable trays, and plenum spaces. Adhere to TIA-568.3-D and ISO/IEC 11801 standards for proper bend radius management to prevent signal degradation. The Push-Pull connector design aids in quick and secure mating, even in tight spaces. For optimal performance, maintain a minimum bend radius of 25mm for loaded cables and 10mm for unloaded cables.
