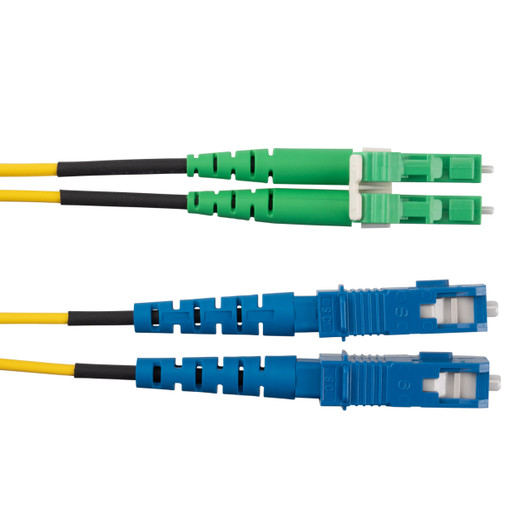

Panduit F92ELB1SNSNM008 Opti-Core OS2 LC/APC to SC Fiber Patch Cord
The Panduit F92ELB1SNSNM008 is a 2-fiber duplex single-mode patch cord engineered for 9/125μm OS2 applications requiring LC/APC to SC connectivity. Built on the Opti-Core platform with 1.6mm zipcord construction and LSZH jacketing, this 8-meter jumper addresses installations where angled-polish LC terminations must interface with legacy SC equipment—common in telecom central offices, long-haul network aggregation points, and data centers migrating from SC-based DWDM gear to LC-dominant 40G/100G switching. The green LC/APC housings signal angle-polished ferrules optimized for return-loss-sensitive single-mode links, while the yellow LSZH jacket meets IEC 60332-1 and 60332-3C flammability requirements for European and international deployments where halogen-free materials are mandated by local fire codes or building standards.
Key Features
- OS2 single-mode fiber rated for 9/125μm applications up to 10km+ at 10GbE, 40km+ at 1GbE
- LC/APC duplex (green) to SC duplex connectors—hybrid topology for APC-sensitive links interfacing with flat-polish SC infrastructure
- 1.6mm round zipcord jacket—easier routing through tight pathways vs. 2.0mm or 3.0mm trunk cables
- LSZH (Low Smoke Zero Halogen) outer jacket compliant with IEC 60332-1/3C for plenum-equivalent installations in Europe and APAC
- 8-meter (26.25 ft) fixed length—pre-terminated and factory-tested to eliminate field-polish labor and insertion-loss variability
- Standard insertion loss spec (typically ≤0.3 dB) with APC endface geometry delivering >60 dB return loss to protect sensitive coherent optics
- Yellow cable color per TIA-598-D single-mode fiber identification standard
- Pull-proof duplex clips on both LC and SC connectors to prevent accidental disconnects during cable-management work
Single-Mode OS2 Performance for Long-Reach and High-Bandwidth Links: OS2 fiber supports attenuation ≤0.4 dB/km at 1310nm and ≤0.3 dB/km at 1550nm, making this jumper suitable for 10GBASE-LR, 40GBASE-LR4, 100GBASE-LR4, and DWDM wavelengths across campus backbone runs, metro-Ethernet handoffs, and storage-area-network extensions. The 9/125μm core diameter ensures mode-field diameter matching with standard single-mode transceivers (SFP+, QSFP28, CFP modules), while the 1.6mm cable diameter reduces bundle congestion in high-density patch panels compared to 2mm or 3mm alternatives. LC/APC connectors on one end deliver the angled endface (8° polish) required to eliminate back-reflection in analog RF-over-fiber systems, PON architectures, and coherent 100G/400G optics where return loss >55 dB is non-negotiable. SC connectors on the opposite end provide backward compatibility with legacy Cisco, Juniper, and telco SONET/SDH equipment still prevalent in carrier networks and older enterprise cores.
LSZH Jacketing for Fire-Safety Compliance and Hybrid Connector Strategy: The IEC 60332-compliant LSZH jacket releases <0.5% hydrochloric acid under combustion, meeting EN 50267-2-3 requirements for European data centers, transportation hubs, and public-assembly venues where PVC is prohibited. This chemistry also reduces corrosive gas emissions that damage adjacent electronics during fire events—critical in telecom equipment rooms housing millions of dollars in optical transport gear. The hybrid LC/APC-to-SC design solves a common field problem: connecting modern LC-based 10G/25G/100G switches (which increasingly ship with APC-polished fiber modules to improve link budgets) to installed SC infrastructure dating from 1G/10G migrations. Rather than forklift-replacing SC patch panels or field-polishing new connectors, integrators can deploy F92ELB1SNSNM008 jumpers as conversion cables, preserving existing SC cabling investments while gaining APC's return-loss advantage on the switch side. The 8-meter length suits cross-aisle connections in Tier III data centers (row-to-row patch runs), IDF-to-MDF riser links in multi-tenant buildings, and equipment-room-to-demarc extensions in telecom carrier hotels.
Factory-Terminated Reliability and Deployment Context: Panduit factory-terminates each LC and SC connector using automated polishing and endface inspection, then validates insertion loss and return loss across both fibers before packaging. This process eliminates the 0.5-1.5 dB loss variability and 10-20% failure rate associated with field-installable connectors, particularly in the APC geometry where achieving the correct 8° angle requires specialized tooling and skill. The duplex clips on both connector types lock into standard LC and SC adapters with audible click confirmation, and the pull tabs allow single-handed removal without stressing the ferrule. For installations requiring documentation, integrators can record the UPC barcode (61305680537) in DCIM or cable-management databases to track each jumper's deployment location, test results, and maintenance history. Common applications include 10GBASE-LR uplinks from access switches to distribution-layer aggregation (LC side) terminating at legacy SC-based core routers; DWDM mux/demux connections where APC polish is mandatory on the DWDM transceiver but SC adapters remain in the fiber distribution frame; and PON OLT-to-splitter links in FTTH deployments where LC/APC OLT ports feed SC-based passive optical splitters in outside-plant cabinets. Carton quantity of 10 supports bulk deployments across multiple racks or buildings while maintaining per-jumper traceability for MAC (move/add/change) work orders.
