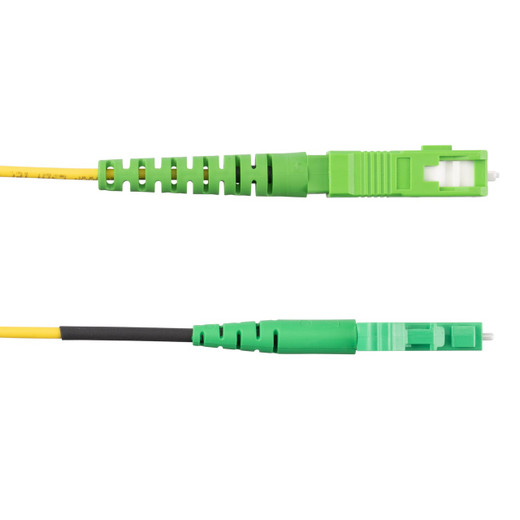

Panduit F91ERANB1SNM001 OS2 1-Fiber Patch Cord

Overview

The Panduit F91ERANB1SNM001 is a 1-meter OS2 simplex fiber optic patch cord designed for connecting network devices. It features a SC/APC simplex connector on one end and a LC/APC simplex connector on the other, terminating in a 1.6mm yellow Riser (OFNR) rated jacket. This cord is suitable for structured cabling deployments where reliable optical signal transmission is critical, such as connecting network switches to patch panels or servers in data centers and telecommunications rooms.

Compatibility

This patch cord is compatible with any network equipment or fiber optic infrastructure utilizing SC Simplex APC and LC Simplex APC ports. It is designed for use with standard fiber optic systems and equipment that support OS2 single-mode fiber. The Riser (OFNR) rating indicates it is suitable for use within the main pathways of commercial buildings, but not in plenums.

Installation Notes

The 1.6mm cable jacket provides a balance between flexibility and durability. Ensure connectors are clean before mating to prevent signal degradation and potential damage. The SC/APC connector features a green housing and requires a specific keying orientation, while the LC/APC connector also uses an angled physical contact polish for reduced back reflection.
