Panduit F91ER1NB1SNM001 OS2 1m Fiber Patch Cord

Overview

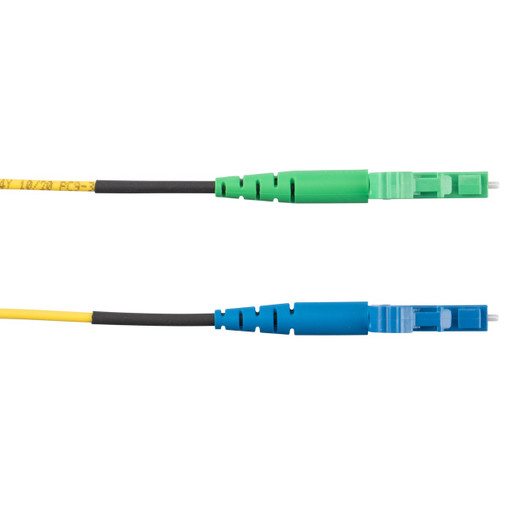

The Panduit F91ER1NB1SNM001 is a 1-meter OS2 single-mode fiber optic patch cord. It's designed for reliable data transmission in structured cabling systems, specifically for connecting network equipment where a direct, short-run fiber link is required. The Riser (OFNR) rating makes it suitable for use within vertical pathways between floors in commercial buildings, avoiding plenum-rated requirements for non-air-handling spaces. This patch cord features LC Simplex on one end and an LC/APC (Angled Physical Contact) connector on the other, ensuring minimal back reflection critical for high-speed data rates.

Compatibility

This patch cord is compatible with any network equipment, patch panels, or fiber optic transceivers utilizing standard LC Simplex and LC/APC Simplex connectors. It is designed for use with single-mode OS2 fiber infrastructure, commonly found in enterprise data centers, telecommunications networks, and high-bandwidth campus backbones. The 1.6mm cable diameter is suitable for dense fiber deployments where space is a constraint.

Installation Notes

The LC/APC connector features an angled end-face polish to reduce back reflection, which is critical for preventing signal degradation in high-speed optical networks. Ensure the connector end-faces are clean before mating. The Riser (OFNR) rating means this cable is suitable for use in building risers but not in air-handling spaces (plenums). Standard insertion loss specifications apply, suitable for most enterprise applications.
