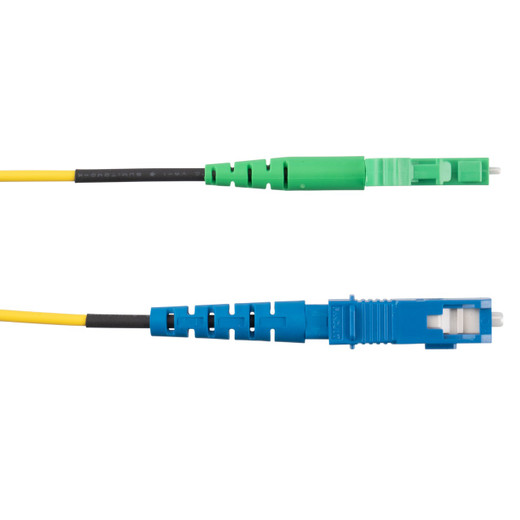

Panduit F91EL3NB1SNM010 Fiber Optic Patch Cord

Overview

The Panduit F91EL3NB1SNM010 is a 10-meter (32.81 ft) OS2 single-mode fiber optic patch cord designed for reliable data transmission in surveillance and network infrastructure. Its LSZH (Low Smoke Zero Halogen) jacket makes it suitable for installations where fire safety regulations are stringent, reducing toxic fumes and smoke in case of fire. This cord provides a direct connection between SC Simplex and LC Simplex APC connectors, ensuring minimal signal loss for critical data links.

Compatibility

This patch cord is engineered for use within fiber optic systems requiring OS2 single-mode connectivity. It is compatible with network devices, cameras, and transceivers utilizing SC Simplex and LC Simplex APC connectors. The standard insertion loss rating ensures compatibility with a wide range of network equipment that meets industry standards for optical performance. It is suitable for use with Panduit's Opti-Core® fiber optic systems.

Installation Notes

The cable features a 1.6mm diameter fiber and a yellow LSZH jacket. Connectors are SC Simplex on one end and LC Simplex APC on the other. Ensure connectors are clean before mating to maintain signal integrity and prevent damage. The cord meets EN 60332-1-2 flammability standards, indicating it has been tested for resistance to fire propagation. The standard insertion loss specification is suitable for typical data center and surveillance runs up to 10 meters.
