Panduit F9TCN5NNNSNM001 OS2 12F Ribbon Pigtail Assembly

Overview

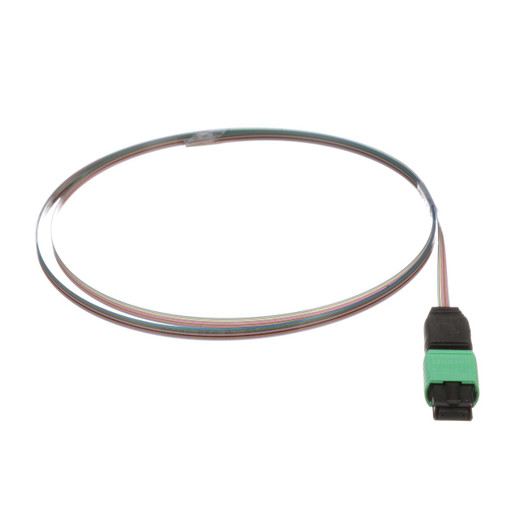

The Panduit F9TCN5NNNSNM001 is a 1-meter (3.2 ft) OS2 single-mode ribbon pigtail assembly designed for terminating fiber optic networks. It features an MPO-12 female connector on one end and an unterminated, raw fiber end on the other, enabling direct fusion splicing or connection to specialized equipment. This assembly is critical for building out high-density fiber optic infrastructure where precise termination is required, such as in data centers or telecommunications closets.

Compatibility

This assembly is compatible with any OS2 single-mode fiber optic systems requiring an MPO-12 female termination point. The unterminated end allows for integration with a wide range of fiber termination panels, splice trays, or custom-built fiber management solutions. It adheres to ITU-T G.657.A2, G.657.B2, and G.652.D standards, ensuring broad interoperability with compliant network equipment.

Installation Notes

Installation requires specialized fiber optic tools and expertise, particularly for fusion splicing the unterminated end. The 1-meter length is suitable for patch panel to equipment or patch panel to splice tray connections within a single rack or cabinet. Adherence to Telcordia GR-20-CORE Issue 4 standards ensures robust performance in demanding environments.
