Panduit FWUYL7575LAM027 Trunk Cable Assembly

Overview

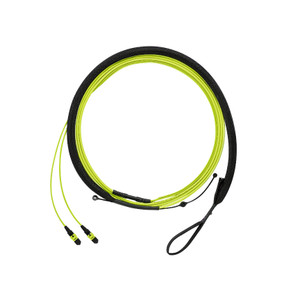

The Panduit FWUYL7575LAM027 is a 27-meter (88.58 ft) OM5, 24-fiber trunk cable assembly. It features PanMPO Female connectors on both ends with a low-profile HD Flex transition and a pulling eye on one end. Designed for data centers requiring quick infrastructure deployment and extended reach, its small diameter uses 30-40% less space, making it ideal for high-density cabling applications. The Low Smoke Zero Halogen (LSZH) rating ensures safety in plenum spaces.

Compatibility

This trunk cable assembly is designed for use within Panduit's QuickNet™ fiber optic systems. It is compatible with infrastructure requiring OM5 fiber specifications for enhanced performance and reach. The PanMPO connectors are engineered for high-density MPO/MTP applications, supporting data center backbone and horizontal cabling needs.

Installation Notes

The cable features an LSZH (Low Smoke Zero Halogen) flammability rating, suitable for installation in plenum spaces where fire safety is critical. It meets or exceeds numerous industry standards including ISO/IEC 11801, TIA/EIA-568-C.3, and TIA-604-5 (FOCIS-5), ensuring reliable performance and interoperability within modern network architectures. The integrated pulling eye facilitates easier installation through conduits and cable trays.
