Panduit FW2RPU1U1NNM7.5 OM5 Fiber Optic Cable

Panduit FW2RPU1U1NNM7.5 OM5 Fiber Optic Cable

Overview

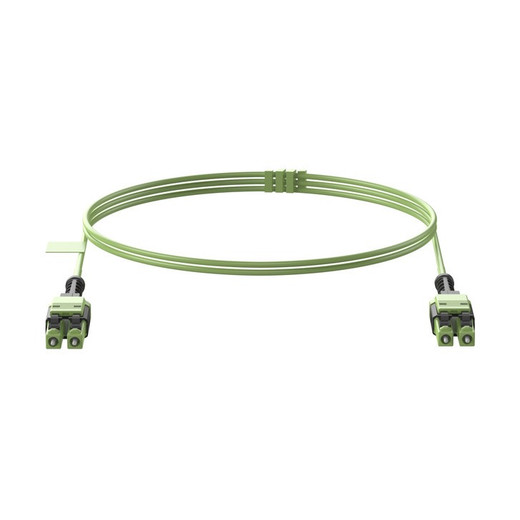

The Panduit FW2RPU1U1NNM7.5 is a QuickNet™ OM5 Wideband Multimode fiber optic patch cable designed for rapid deployment in high-density environments. It features two fibers with LC Duplex connectors and an OFNP plenum-rated jacket, making it suitable for applications requiring robust, pre-terminated fiber infrastructure in data centers, telecommunications rooms, and equipment distribution areas. This cable simplifies installation by providing a plug-and-play solution that meets stringent flammability standards.

Compatibility

This cable is designed for use with standard LC Duplex fiber optic ports found in network switches, servers, and patch panels. Its OM5 Wideband Multimode fiber type ensures compatibility with transceivers operating at wavelengths from 850nm to 953nm, supporting higher bandwidth applications like 40/100 Gbps Ethernet. It adheres to TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards, ensuring interoperability with compliant networking equipment.

Installation Notes

The UNIBOOT/LPK1MOQ10 designation indicates a push-pull tab mechanism for easy connector insertion and removal, particularly useful in dense rack environments. The OFNP (Plenum) rating signifies that the cable jacket is suitable for installation in air handling spaces, meeting safety requirements for plenum-rated environments. Ensure proper bend radius management to maintain signal integrity; OM5 fiber typically requires a minimum bend radius of 25mm (1 inch) when not under tension.
