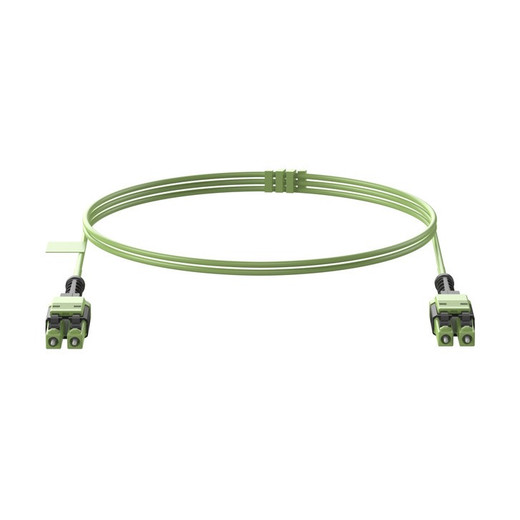

Panduit FW2RPU1U1NNM4.5 OM5 Fiber Optic Cable

Panduit FW2RPU1U1NNM4.5 OM5 Fiber Optic Cable

Overview

The Panduit FW2RPU1U1NNM4.5 is a 2-fiber OM5 Wideband Multimode duplex LC fiber optic cable assembly. It is designed for high-density environments like data centers and telecommunications rooms, providing pre-terminated infrastructure for rapid deployment. The OM5 fiber type supports a wider range of wavelengths, offering increased bandwidth and future-proofing for emerging applications.

Compatibility

This cable assembly terminates with LC Duplex connectors, compatible with standard LC ports on network switches, servers, and other data center equipment. The OM5 (50/125µm) fiber type is backward compatible with OM3 and OM4, but achieves its maximum performance benefits when paired with OM5-compliant transceivers and equipment for applications requiring higher bandwidth over multimode fiber.

Installation Notes

The cable features an OFNP (Plenum) flammability rating, suitable for installation in air handling spaces. Adherence to TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards ensures proper performance and interoperability within structured cabling systems. The Uniboot design minimizes cable bulk, simplifying management in high-density racks.
