Overview

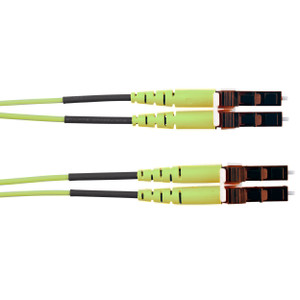

The Panduit FW2ERLNLNSNM047 is a 47-meter (154.2 ft) OM5 Wideband Multimode fiber optic patch cable. It features two 1.6mm simplex fibers terminated with LC Duplex connectors on both ends, suitable for high-density environments requiring rapid deployment. Its Riser (OFNR) flammability rating makes it appropriate for vertical pathways within buildings.

Compatibility

This cable is designed for use in data centers, telecommunications rooms, entrance facilities, and equipment distribution areas. It supports applications requiring pre-terminated fiber infrastructure. The OM5 fiber type is backward compatible with OM3 and OM4 but offers enhanced performance for short-wavelength division multiplexing (SWDM) applications, enabling higher bandwidth over existing infrastructure. It is compliant with TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards, ensuring interoperability with compliant network equipment and structured cabling systems.

Installation Notes

The 1.6mm jacket diameter and Riser (OFNR) rating are key considerations for building code compliance and pathway fill ratios. Ensure proper bend radius management (minimum 1.0-inch for 1.6mm cable) is maintained during installation to prevent signal degradation or damage. The LC Duplex connectors provide a secure, high-density connection suitable for SFP, SFP+, QSFP+ transceivers and other modular network interface devices.
