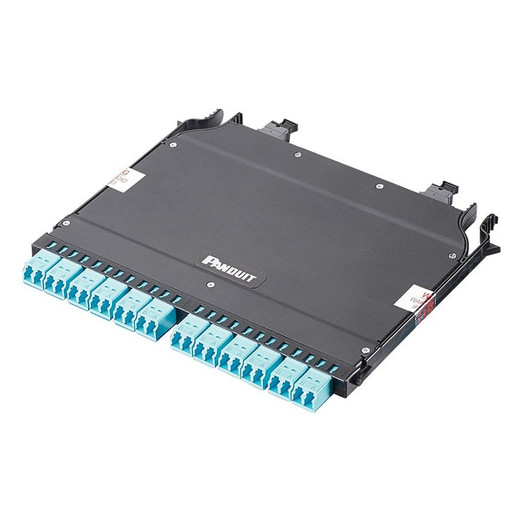

Panduit FHC3ZO-24H-10B OM4 HD FLEX (3)8F MPO TO (12)LC Concise Descriptor

Overview

The Panduit FHC3ZO-24H-10B is an OM4 HD FLEX fiber optic cable assembly designed for high-density environments. It features a 3x 8-fiber MPO connector on one end and 12x LC connectors on the other, enabling efficient transitions between high-count trunk cables and standard server or switch ports. This cable is engineered for data center backbone and horizontal cabling, supporting 40GbE and 100GbE applications where space and performance are critical. The FHC3ZO-24H-10B model specifically addresses the need for reliable, high-bandwidth connectivity in modern network infrastructure.

Compatibility

This cable is compatible with any network equipment utilizing MPO (3x 8-fiber configurations) and LC connectors, including high-density patch panels, transceivers (QSFP+, CFP, etc.), and server network interface cards. It is suitable for use with Panduit's HD FLEX fiber optic cabling system and other standards-compliant MPO/LC infrastructure.

Installation Notes

When installing the FHC3ZO-24H-10B, maintain a minimum bend radius of 20mm (0.79 inches) for the HD FLEX cable to prevent signal degradation. Ensure MPO connectors are clean before mating to avoid performance issues. The cable's push-pull tab on the MPO connector aids in secure and easy insertion/removal.
