Panduit FRZ8द्योगिकीYL011M020 OM4 Fiber Cable - FRZ8PYYL011M020

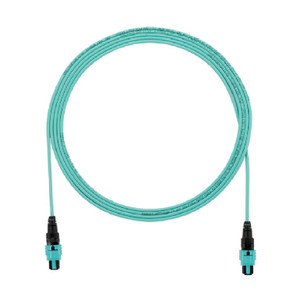

Panduit FRZ8PYYL011M020 Opti-Core OM4 MPO-8 Pre-Terminated Fiber Trunk Cable

Overview

The Panduit FRZ8PYYL011M020 is a 20-meter (65.6 ft) pre-terminated OM4 multimode fiber trunk cable from the Panduit Opti-Core line, built for structured fiber optic cabling in data centers, telecommunications rooms, and entrance facilities. It ships ready to install — no field termination, no polishing, no splice — which eliminates the labor and consistency risk that drives up deployment cost in multi-rack or high-density environments. The MPO Female APC connector and Polarity B alignment target high-density cassette and module-based interconnect architectures where precision fiber management matters.

Compatibility

Designed for use with MPO-based fiber patch panels, cassette modules, and trunk management systems that accept MPO Female APC connectors with Polarity B configuration. Fits Panduit Opti-Core modular plug-and-play infrastructure including high-density patch environments in ANSI/TIA-942-B-compliant data center builds. The OM4 50/125µm multimode fiber supports 40GBase-SR4 and 100GBase-SR10 applications — practical for backbone runs between top-of-rack and end-of-row switches where bandwidth headroom matters. Verify your cassette or module supports APC-grade MPO connectors and Polarity B mapping before ordering; APC and UPC connectors are not interchangeable. Standards compliance with TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B means this cable integrates cleanly into auditable structured cabling installations without needing separate certification documentation.

Installation Notes

Route as a pre-dressed trunk — measure the run and confirm 20m clears your pathway with enough slack at each end for panel dressing. Polarity B means the fiber positions are reversed end-to-end; pair with Polarity B-compatible modules or confirm your interconnect scheme accounts for polarity before commissioning. APC connectors require APC-compatible adapters; mating with UPC adapters will degrade insertion loss. UL listed, suitable for indoor plenum and riser pathways where UL compliance is required by code.
