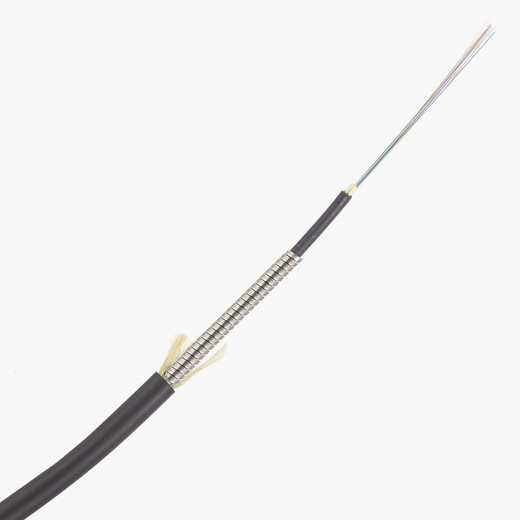

Panduit FOKPZ06 OM4 6F INDOOR/OUTDOOR PLENUM OF

Overview

The Panduit FOKPZ06 is a 6-fiber OM4 multimode fiber optic cable designed for robust data transmission in indoor and outdoor environments. Its plenum rating makes it suitable for installation in air-handling spaces, ensuring compliance with building codes for critical infrastructure like video surveillance networks. This cable provides the necessary bandwidth for high-definition video streams and data transfer between network devices, cameras, and recording systems.

Compatibility

This OM4 fiber optic cable is compatible with standard LC, SC, ST, and MPO/MTP connectors and associated fiber optic transceivers (e.g., SFP, SFP+, QSFP+) used in network switches, NVRs, and IP cameras. It is suitable for use with equipment from major surveillance and networking vendors that support OM4 fiber specifications. Ensure your termination hardware and active network components are rated for OM4 performance to achieve maximum data rates and transmission distances.

Installation Notes

Maintain a minimum bend radius of 1.0 inch (25.4 mm) during installation and 0.5 inches (12.7 mm) after installation to prevent signal degradation. The cable is rated for outdoor use but should be protected from direct sunlight and extreme temperatures where possible for maximum longevity. Ensure proper termination and testing procedures are followed to verify signal integrity post-installation.
