Panduit FZ2ERLNSNSNF010 OM4 Fiber Optic Cable

Panduit FZ2ERLNSNSNF010 OM4 Fiber Optic Cable

Overview

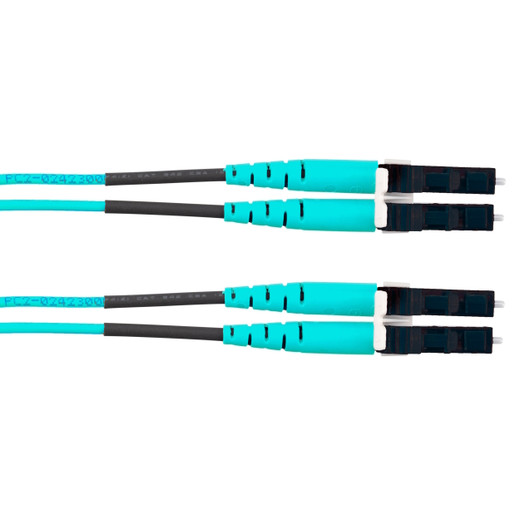

The Panduit FZ2ERLNSNSNF010 is a QuickNet™ OM4 multimode fiber optic patch cord designed for environments demanding high-bandwidth, low-latency data transmission. Its 2-fiber, 1.6mm jacketed construction with LC Duplex connectors on both ends facilitates rapid deployment in data centers, telecommunications rooms, and equipment distribution areas where pre-terminated infrastructure is critical for reducing installation time and complexity. This cable supports applications requiring up to 100 Gbps Ethernet, making it suitable for high-density network backbones and storage area networks.

Compatibility

This cable is engineered for use with standard LC Duplex ports found in network switches, servers, and fiber optic transceivers. It is compliant with TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards, ensuring interoperability with a wide range of networking equipment from various manufacturers that adhere to these specifications. The OM4 fiber type supports higher bandwidth and longer reach compared to OM3 for 40Gbps and 100Gbps applications.

Installation Notes

The Riser (OFNR) flammability rating indicates this cable is suitable for use within the walls of buildings, but not in plenums. The 1.6mm jacket diameter provides a balance between flexibility and protection. Ensure proper connector mating and avoid sharp bends exceeding the minimum bend radius to maintain signal integrity and prevent damage.
