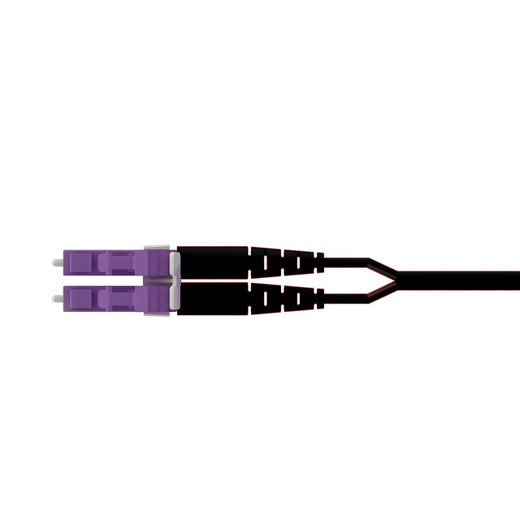

Panduit FS2EPKGKGNGM008 Opti-Core™ OM4+ 8m Coded Fiber Patch Cord

The Panduit FS2EPKGKGNGM008 delivers OM4+ Signature Core™ fiber performance with physical-layer security enforcement through G-violet keyed LC connectors. This 8-meter plenum-rated duplex patch cord prevents unauthorized or accidental cross-connections in multi-tenant data centers, secure government facilities, and enterprise edge-to-core networks where color-coded fiber management is a compliance or operational requirement. The 1.6mm zipcord jacket enables tight-radius routing in high-density panels while maintaining OFNP plenum rating for above-ceiling airflow installations.

Key Features

• G-Violet Coded LC Duplex Connectors — Physical keying prevents mispatch; only mates with matching G-violet adapters and cables
• OM4+ Signature Core™ Fiber — Ultra-low insertion loss supports 40/100G applications beyond standard OM4 distance limits
• OFNP Plenum Rating — UL/cUL listed for cámara impelente installations in HVAC air-handling spaces
• 1.6mm Zipcord Jacket — Low-profile twin-cable design fits dense patch fields; purple outer jacket matches violet fiber type convention
• 8-Meter Length (26.25 ft) — Pre-terminated at factory with polished end-faces; ideal for inter-rack or zone-to-zone data center connections
• RoHS Compliant — Meets EU Directive 2011/65/EU for lead-free, environmentally responsible deployment

Panduit's Opti-Core coded connectivity system addresses a recurring vulnerability in mission-critical fiber networks: visual similarity between cables serving different VLANs, security zones, or tenants. In traditional installations, a purple OM4 cable with standard LC connectors will physically insert into any LC adapter — meaning a technician can accidentally patch tenant A's storage VLAN into tenant B's uplink port, or connect a classified network segment to an unclassified aggregation switch. The FS2EPKGKGNGM008's G-violet keying enforces separation at the mechanical layer: the LC connector bodies incorporate polymer tabs and recesses that only align with G-violet-coded mating adapters. Attempting to insert this cord into a non-coded (universal) or differently coded adapter (e.g., G-aqua, G-red) results in a physical block — the connector cannot fully seat and the link will not establish. This design mitigates both human error and malicious insider activity, and is especially valuable in DoD/DISA STIG environments, financial trading floors, healthcare systems under HIPAA, and colocation facilities managing dozens of isolated customer networks within the same cabinet row.

The underlying OM4+ Signature Core fiber delivers 50µm laser-optimized multimode performance with tighter manufacturing tolerances than industry-standard OM4. Panduit's proprietary core-geometry process reduces modal dispersion and insertion loss variability, yielding typical patch-cord IL below 0.15 dB (versus 0.3 dB budgeted in TIA-568 for OM4). This headroom is critical when aggregating multiple patch points in a 40GBASE-SR4 or 100GBASE-SR4 channel: every 0.1 dB saved at the equipment cord and horizontal cross-connect translates to extended backbone trunk length or an additional splice point before hitting the 1.5 dB total-channel loss ceiling. Installers supporting 40G over parallel optics across 125–150 meters (near the OM4 limit) will find OM4+ provides margin against future transceiver aging or connector wear. The fiber is also fully backward-compatible with 10GBASE-SR, 25GBASE-SR, and legacy 1G/10G SFP+ links — no performance penalty when deployed in mixed-speed aggregation environments.

The OFNP (Optical Fiber Nonconductive Plenum) flammability rating certifies the cable for installation in air-return spaces above drop ceilings and below raised floors without conduit, per NEC Article 770. The jacket formulation self-extinguishes during flame exposure and produces minimal smoke — essential for life-safety compliance in occupied buildings. The 1.6mm zipcord construction presents two round 0.9mm tight-buffered fibers side-by-side under a single purple outer sheath, resulting in a lower bend-insertion-loss penalty and smaller patch-panel footprint than 2.0mm or 3.0mm round cordage. High-density LC quad panels (96 or 144 ports per 1U) benefit from the reduced congestion: technicians gain better airflow visibility and finger access when dressing jumpers, and the lighter per-cable weight reduces strain on LC clip retention over time. The factory-terminated LC connectors use ceramic ferrules polished to better than 50 dB return loss, eliminating field-polish labor and the risk of contamination or end-face damage during pull-through. Each cord ships individually bagged with protective dust caps; carton quantity is 10 for volume deployment.

Deploy the Panduit FS2EPKGKGNGM008 when your installation requires both OM4+ performance headroom and enforceable physical-layer segmentation — whether that's isolating PCI-DSS cardholder environments from corporate networks, color-coding federal agency networks by classification level, or simply preventing the 3 a.m. cross-patch incident that takes down a SAN fabric. The 8-meter length suits cross-aisle data center runs, riser jumpers between vertically stacked enclosures, or perimeter-to-core links in medium-scale telecom rooms. Pair with Panduit's G-violet coded LC adapters and cassettes to build a complete keyed infrastructure, or integrate selectively into universal systems where specific ports demand mismatch protection. This is engineered connectivity for environments where "oops, wrong port" is not an acceptable failure mode.
