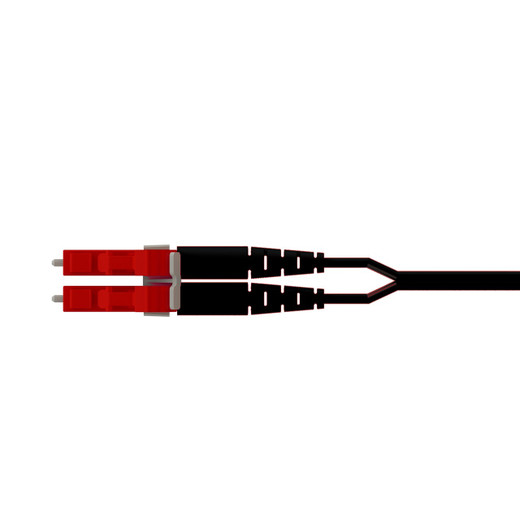

Panduit FS2EPKBLNNBM007 Opti-Core OM4+ 2-Fiber Coded Duplex LC Patch Cord

The Panduit FS2EPKBLNNBM007 delivers enterprise-grade fiber connectivity with color-coded physical-layer security. This 7-meter OM4+ Signature Core duplex LC patch cord features ultra-low insertion loss performance and plenum-rated construction, making it ideal for high-speed data center interconnects, storage area networks, and campus backbone applications where both performance and physical security matter. One end features Panduit's patented color-coded LC connector (red, Code B) that physically keys to matching receptacles, while the other end uses standard duplex LC for flexible integration with existing infrastructure.

Key Features

• OM4+ Signature Core Technology — Enhanced fiber specification supports 40/100 Gigabit Ethernet at extended distances with margin to spare
• Color-Coded Physical Security — Code B red LC connector on one end keys only to matching receptacles, preventing unauthorized connections or accidental cross-patching
• Ultra-Low Insertion Loss — Factory-terminated connectors deliver consistent, reliable optical performance with minimal signal degradation
• Plenum Rated (OFNP) — Approved for installation in air-handling spaces without additional conduit, meeting NEC Article 770 requirements
• 7-Meter Length — Provides flexible reach for cross-connects between racks, zone distribution areas, or equipment rooms
• Duplex LC Connectors — Industry-standard small-form-factor interface compatible with switches, servers, media converters, and storage devices

Panduit's Opti-Core coded fiber system adds a critical layer of physical-layer security to your network infrastructure. In environments where multiple tenants, classifications, or VLANs share the same equipment room, color-coded connectors ensure that only authorized technicians with matching keyed adapters can establish connections. The FS2EPKBLNNBM007 features a red Code B LC connector on one end—this physically prevents insertion into non-matching receptacles, eliminating the risk of accidental cross-connects that could bridge security zones or cause network outages. The opposite end uses standard duplex LC, allowing you to secure the critical end of the link while maintaining compatibility with existing patch panels or equipment ports.

Built on OM4+ Signature Core fiber, this patch cord exceeds the performance requirements of standard OM4 multimode fiber. The enhanced core geometry and tight manufacturing tolerances deliver lower attenuation and higher bandwidth across the 850nm window used by SR optics, providing headroom for 40GBASE-SR4, 100GBASE-SR4, and future higher-speed standards. The 1.6mm zipcord cable jacket is plenum rated (OFNP), allowing installation in drop ceilings, raised floors, and HVAC plenums without conduit. Factory-terminated connectors undergo rigorous insertion loss testing to ensure consistent sub-0.3dB performance, and the duplex LC footprint fits high-density patch panels where port count matters.

This patch cord is RoHS compliant and ships as part of Panduit's end-to-end fiber optic system, which includes matching color-coded adapters, panels, and trunk cables. Whether you're segmenting a multi-tenant data center, isolating classified networks, or simply adding visual organization to a complex equipment room, the FS2EPKBLNNBM007 combines robust fiber performance with a proven physical security mechanism that doesn't rely on labels, documentation, or human discipline.
