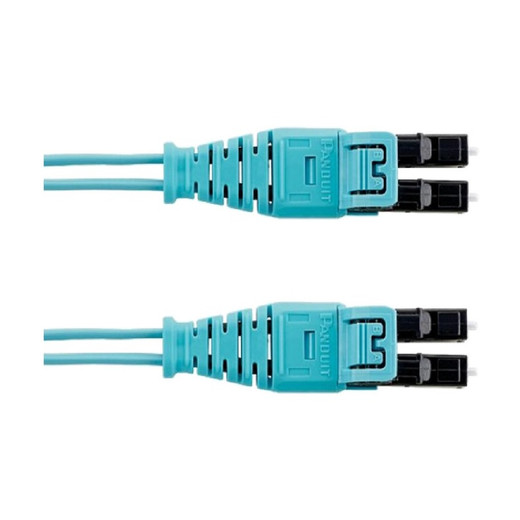

Panduit FZ2ELQ1SNSNM015 OM4 Fiber Optic Cable

Panduit FZ2ELQ1SNSNM015 OM4 Fiber Optic Cable

Overview

The Panduit FZ2ELQ1SNSNM015 is a 15-meter (49.2 ft) OM4 2-fiber optic cable designed for high-speed data transmission in demanding network environments. Its Low Smoke Zero Halogen (LSZH) jacket makes it suitable for installations where fire safety is critical, such as data centers, telecommunications rooms, and entrance facilities. The Push-Pull LC/SC connectors enable rapid, tool-less deployment, reducing installation time and complexity.

Compatibility

This cable is engineered for use with OM4 multimode fiber infrastructure. It utilizes LC Duplex connectors, compatible with standard LC ports found in network switches, transceivers, and patch panels. The TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards compliance ensures interoperability with equipment adhering to these specifications, common in enterprise data centers and telecommunications backbones.

Installation Notes

The cable features a 1.6mm jacket diameter, offering a balance between flexibility and durability. Its LSZH construction minimizes the release of toxic fumes in case of fire, making it suitable for plenum spaces or areas with strict fire codes. The Push-Pull connector design simplifies mating and un-mating, reducing installation strain and potential damage to connectors or ports.
