Panduit OM4 24FIBER INTERCONPLENUM F BREAKOUT 24 60CM 34FT - FRZUP77Y002F034

Panduit FRZUP77Y002F034 Concise Descriptor

Overview

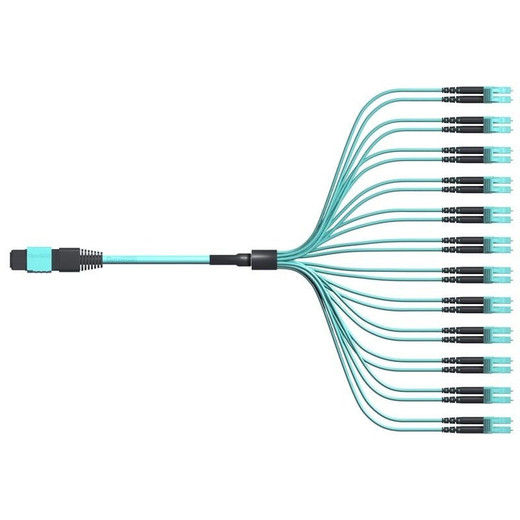

The Panduit FRZUP77Y002F034 is a 24-fiber OM4 breakout cable designed for high-density network infrastructure. It terminates a 24-fiber MPO/MTP connector into 12 individual LC duplex connectors, providing a flexible transition for connecting high-speed network equipment in data centers or enterprise backbones. The 60cm (2ft) leg length on the breakout side offers sufficient reach for rack-to-rack or equipment-to-patch panel connections without excessive slack.

Compatibility

This cable is engineered for use with standard MPO/MTP trunk cables and LC-based network interface cards (NICs), transceivers, and patch panels. It is suitable for 40GbE, 100GbE, and higher speed Ethernet applications utilizing parallel optics. Ensure your equipment ports match the LC duplex connector type and OM4 fiber specifications for optimal performance.

Installation Notes

Maintain a minimum bend radius of 1 inch (25mm) for the main trunk and 0.5 inches (12.5mm) for the breakout legs to prevent signal degradation. Avoid sharp bends or kinks during installation. The cable is plenum-rated (OFNP) for use in air-handling spaces.

What's in the Box

• 1x Panduit FRZUP77Y002F034 OM4 24-Fiber Breakout Cable (24F MPO to 12x LC Duplex, 60cm legs, 34ft total length)
