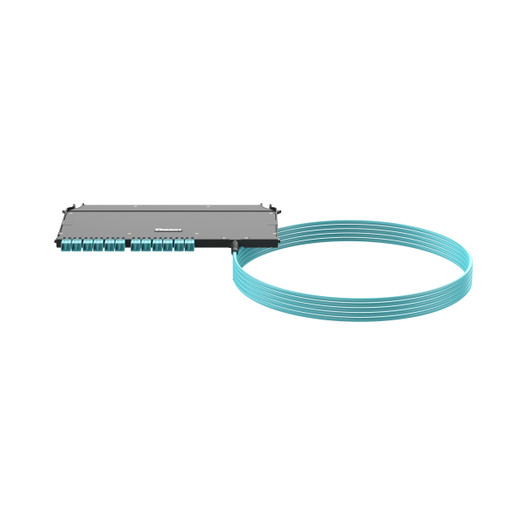

Panduit FZUYPXRNNNNF150 OM4 Fiber Trunk

Panduit FZUYPXRNNNNF150 OM4 Fiber Trunk

Overview

The Panduit FZUYPXRNNNNF150 is a 24-fiber OM4 multimode trunk cable designed for high-density, rapid deployment in enterprise data centers, telecommunications rooms, and equipment distribution areas. It solves the challenge of time-consuming field termination by providing a pre-terminated infrastructure solution, ensuring consistent performance and reducing installation labor. This cable leverages the QuickNet™ system for simplified connectivity.

Compatibility

This Panduit QuickNet™ trunk cable is designed for use within Panduit's structured cabling systems, specifically those supporting OM4 fiber. It is compatible with Panduit's range of fiber optic patch panels, cassettes, and distribution modules that accept 24-fiber MPO/MTP connectors. It meets TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B standards, ensuring interoperability with compliant network equipment.

Installation Notes

The pre-terminated nature of the FZUYPXRNNNNF150 significantly reduces installation time compared to field-terminated fiber. Proper care must be taken to avoid kinking the cable, especially the 50/125µm OM4 multimode fiber, which has a minimum bend radius requirement of 7.5mm (0.3 inches) when under tension and 15mm (0.6 inches) when not under tension. Ensure connectors are clean before mating to prevent signal degradation.
