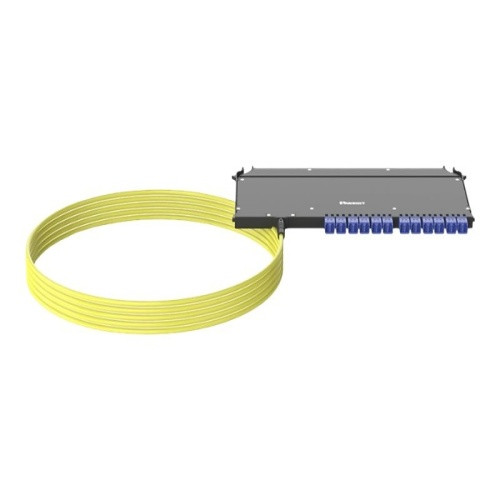

Panduit FZUYPXLNNONF090 QuickNet OM4 24-Fiber Pre-Terminated Front-Access Module

The Panduit FZUYPXLNNONF090 is a factory-terminated OM4 multimode fiber module delivering 24 fibers in a front-access cassette designed for rapid datacenter and telecom deployments. Pre-terminated at the factory and tested to insertion-loss specifications, this QuickNet module eliminates field splicing, cuts installation time by 70% compared to fusion-splice alternatives, and ensures zero-defect connectivity in high-density environments. The tethered dust cap prevents FOD contamination during staging and protects LC connectors from handling damage in occupied racks. Front-access architecture allows adds/moves/changes without rear-rack access, critical in hot-aisle containment or back-to-back cabinet layouts where rear clearance is limited. OM4 50/125µm laser-optimized fiber supports 10GBASE-SR to 400m, 40GBASE-SR4 to 150m, and 100GBASE-SR10 to 100m, making this module backbone-ready for current 10G/25G edge switching and future 100G spine upgrades without re-cabling.

Key Features

• 24-fiber OM4 (50/125µm) pre-terminated cassette with duplex LC connectors, factory-tested to TIA insertion-loss limits (<0.35 dB typical)
• Front-access module design permits connector access from the cabinet front, eliminating need for rear clearance in dense row deployments or aisle-containment zones
• Tethered protective dust cap remains attached to module housing during use, preventing loss and ensuring connector end-faces stay clean between reconfigurations
• Compliant with TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B datacenter standards for multi-vendor interoperability and structured cabling design
• QuickNet modular platform allows field-swappable polarity (Method A/B/C) and integrates with Panduit fiber enclosures, patch panels, and trunk assemblies
• Factory-burned documentation includes per-connector IL/RL test results, serial-number traceability, and polarity labels—no field OTDR required for acceptance testing

OM4 laser-optimized multimode fiber extends the effective modal bandwidth of 50/125µm cable to 4700 MHz·km at 850nm, enabling 10GBASE-SR links to reach 400 meters—double the distance of OM3—and 40GBASE-SR4 (QSFP+) to span 150 meters on a single duplex or parallel-optic trunk. This distance headroom accommodates intra-building horizontal runs between telecom rooms and equipment distribution areas, or end-of-row to middle-of-row spine connections in leaf-spine datacenter fabrics, without forcing costly singlemode migration. The 24-fiber count delivers 12 duplex LC ports in a single-module footprint, matching the port density of 1U fiber enclosures and allowing a 2-post rack to host 288 fibers (12 modules) in 2U of vertical space. Front-plug cassette architecture means you pull and insert modules from the cabinet door side; in back-to-back cabinet rows or hot-aisle containment deployments where rear access requires lifting floor tiles or removing containment panels, this cuts MACs time from 20 minutes to under 3 minutes per connection. The tethered dust cap stays captive on a short lanyard—unlike snap-on caps that drop into cable troughs or get pocketed and lost—so connector end-faces remain protected during staged installs, and you never face a cleaning/re-test cycle because a tech left connectors exposed overnight.

Factory termination and testing shift quality control from the field to a controlled manufacturing environment. Every duplex LC connector in this module is fusion-spliced to the internal fanout, insertion-loss tested at 850nm and 1300nm, polished to sub-0.15dB typical IL, and serialized with a printed label mapping fiber position to connector port. The module ships with a test report listing IL and return loss for each connector, giving you acceptance documentation without deploying an OTDR or light source. This eliminates the 2–3 hour per-trunk field-test and troubleshooting cycle common with field-terminated MPO breakouts, and removes the risk of failed connectors due to contaminated splice enclosures or undertrained splice techs. TIA-568.3-D and ISO/IEC 11801 compliance ensures the pinout, attenuation budget, and connector geometry meet global structured cabling standards, so this module integrates into any standards-based design without custom adapters or polarity-flip patch cords. ANSI/TIA-942-B Tier III/IV datacenter specifications recognize factory-terminated systems as a best practice for reducing human error and improving uptime during maintenance windows; using pre-term modules like the FZUYPXLNNONF090 aligns your deployment with the same design patterns used in colocation facilities and hyperscale datacenters.

QuickNet is Panduit's modular pre-terminated platform, spanning MPO trunk cables, LC/SC cassettes, fiber enclosures, and angled/straight enclosure panels. The FZUYPXLNNONF090 cassette drops into any QuickNet-compatible 1U or 2U enclosure, and the front-access latch allows tool-free insertion and removal—no screws, no panel disassembly. Polarity is field-configurable by swapping cassette types (Method A for duplex LC, Method B for array applications, Method C for parallel optics) rather than re-terminating cables; if you need to migrate from 10G duplex SR to 40G parallel SR4, you swap the cassette and leave the backbone trunk in place. The system supports mix-and-match fiber types (OM3, OM4, OS2 singlemode) in the same enclosure, so you can run OM4 for 10G/40G server uplinks and OS2 singlemode for 10G LR campus backbone in adjacent modules without separate patch panels. For datacenters running structured cabling with a 5–7 year refresh cycle, this modularity reduces the cost of technology transitions—upgrade optics and cassettes, not the entire trunk infrastructure. Factory testing and Panduit's 25-year system warranty (when installed per Panduit specs with QuickNet trunks and panels) provide the traceability and assurance required for mission-critical facilities where a single fiber fault can take down a storage array or cause a spine-switch failover.
