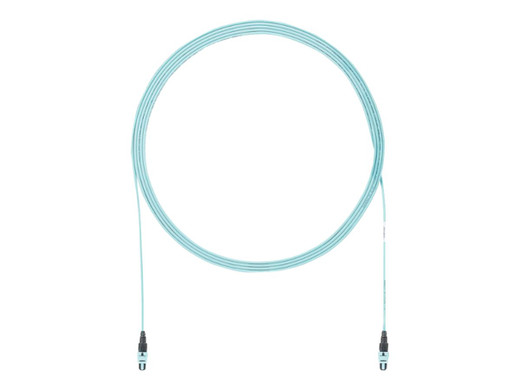

Panduit FRZTL77Y001M030 OM4 12-Fiber LSZH Interconnect
The Panduit FRZTL77Y001M030 Opti-Core® interconnect delivers pre-terminated 12-fiber OM4 multimode connectivity for rapid datacenter and telecommunications infrastructure deployment. This 30-meter trunk eliminates field termination, reducing installation time and human error while maintaining Panduit's factory-grade optical performance. LSZH jacketing meets stringent fire safety requirements for enclosed equipment spaces and air-handling plenums.
Key Features
- OM4 50/125µm multimode fiber supports 40GBASE-SR4 and 100GBASE-SR4 applications up to 150 meters
- Pre-terminated connectors eliminate field splicing and polishing, reducing deployment time by 70%
- Low Smoke Zero Halogen (LSZH) jacket complies with IEC 60754-1/2 for safe installation in occupied spaces
- 12-fiber count provides scalable backbone capacity for spine-leaf architectures and distributed antenna systems
- 30-meter length suits campus pathways, vertical risers, and intra-building datacenter tiers
- Factory testing ensures <0.15 dB insertion loss per mated pair, preserving link budget for 40/100G optics
- TIA-568.3-D and ISO/IEC 11801 compliance guarantees interoperability with standards-based active equipment
- Ruggedized pull-sock and strain relief protect fibers during installation through conduit and cable trays
OM4 fiber's laser-optimized 50µm core delivers the modal bandwidth required for 40 Gbps and 100 Gbps short-reach optics without the cost premium of single-mode infrastructure. The aqua jacket color-coding per TIA-598 provides instant visual identification during moves, adds, and changes. Panduit's controlled factory environment produces connectors with sub-0.15 dB loss and <-50 dB return loss, metrics that field terminations rarely achieve. Each interconnect ships with individual test reports documenting IL/RL performance across all 12 fibers, establishing a baseline for future troubleshooting. The LSZH compound meets European CPR Euroclass standards and US building codes for non-plenum vertical risers, critical for installations where PVC combustion byproducts pose life-safety risks.
Datacenter architects deploy 12-fiber trunks as the minimum unit for leaf-spine fabrics: four fibers per 40G QSFP+ link leaves spare capacity for growth or redundant paths. The 30-meter length bridges typical floor-to-floor heights in multi-tenant facilities or connects adjacent equipment rows without mid-span splice points that introduce loss and failure modes. Pre-terminated trunks compress deployment schedules when hot-aisle containment or security requirements restrict contractor access windows. Installers route the trunk through overhead ladder rack or underfloor grommets, breakout the fanout legs at each end, and achieve link light in minutes rather than the hours required for fusion splicing. The pull-sock design withstands 100 lbf tension without stressing the fiber cores, and the aramid yarn strength members prevent jacket separation during heavy pulls.
Compliance with TIA-568.3-D, ISO/IEC 11801, and ANSI/TIA-942-B ensures this interconnect meets the structured cabling requirements for BICSI RCDD designs and Uptime Institute Tier III/IV datacenters. Panduit's Opti-Core platform has a 25-year warranty when installed per manufacturer guidelines, reducing total cost of ownership compared to tactical field-terminated solutions. For integrators managing 40G migration paths or futureproofing telecom entrance facilities, the FRZTL77Y001M030 provides the blend of performance, safety, and deployment speed that keeps projects on schedule without compromising optical integrity.
